Home > Products > Aluminium Alloy > 3XXXSERIES > 3004 color coated aluminum coil

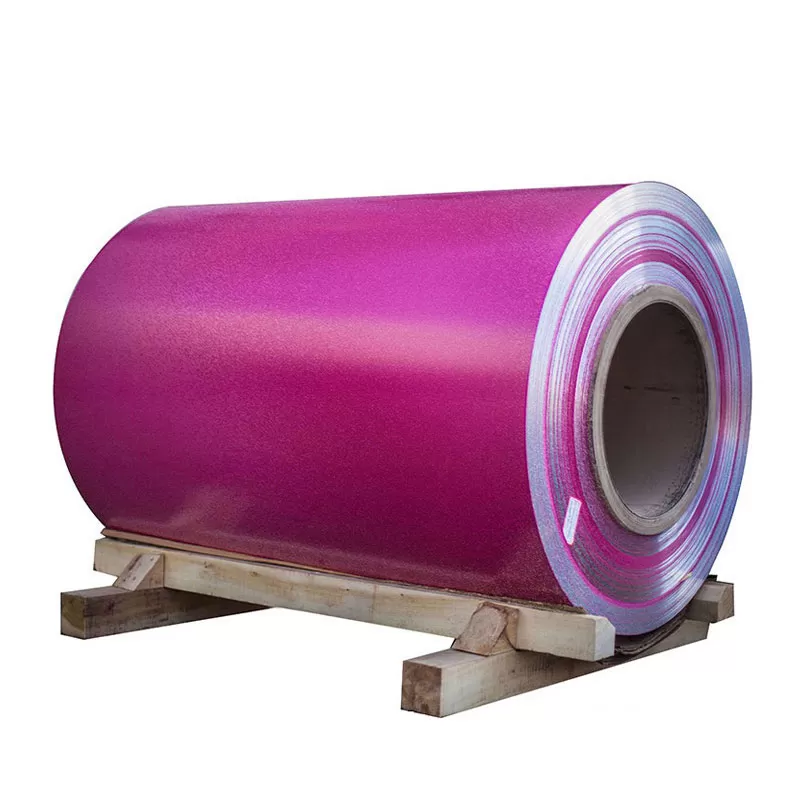

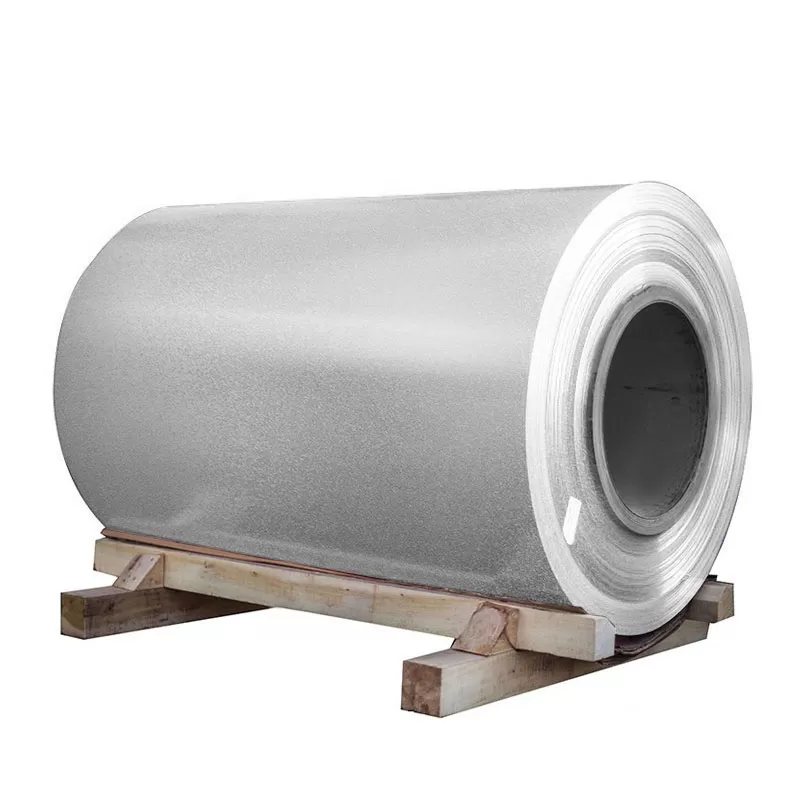

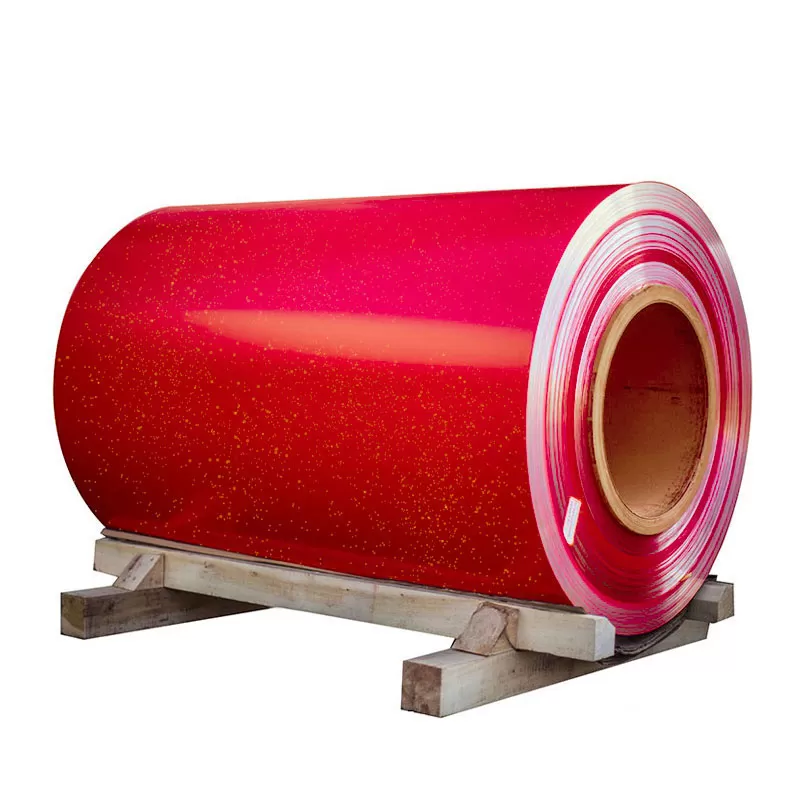

3004 color coated aluminum coil

Series: AA3004

Thickness: 0.016-1.5mm

Width: <1600mm


Warrantly   :  Regular PE: 3-5 years ;

                         High Performance PE: 6-9 years;

                         PVDF: 15 years ;

                         FEVE: Two coats: between 10-15 years ;

                         FEVE: Three coats: 15-20 years

Application: aluminum composite panel, aluminum honeycomb, fireproof veneer, aluminum ceiling, shutters, roller shutter door, etc.



Product Description

What Is 3004 color coated aluminum coil?

Aluminum alloy 3004 color coated aluminum coil has multiple advantages. It has a high tensile strength, good corrosion resistance, and is easy to work with. Its surface has a beautiful, long-lasting color that's resistant to fading. The coil is lightweight and easy to transport, making it a popular choice for construction, and its eco-friendliness adds to its appeal. Overall, it's a quality product that provides durability and aesthetic appeal for a variety of applications.


The advantage of 3004 aluminum alloy

The 3004 color coated aluminum coil in the aluminum alloy series offers numerous advantages. It has excellent corrosion resistance, making it a durable choice for a variety of applications. Additionally, it is lightweight, easy to work with, and boasts a beautiful, long-lasting finish that enhances the aesthetic appeal of any project.Regular PE: 3-5 years High performance PE: 6-9 years PVDF: 15 years FEVE: Two coats: 10-15 years between three coats: 15-20 years.


JINHU Color coated aluminum coil Technical data:

POLYESTERPVDF
ItemTechnical requirementsItemTechnical requirements
Thickness of coating film≥ 18 µmThickness of coating film≥ 25µm
Gloss deviationgloss<70, tolerance≤10%Gloss deviationgloss<70, tolerance≤10%
gloss≥70, tolerance≤5%gloss≥70, tolerance≤5%
Hardness of pencil≥3HHardness of pencil≥3H
Adhesionno lower than class 1Adhesionno lower than class 1
Flexibility≤2TFlexibility≤2T
Boiling water resistanceno change (2h)Boiling water resistanceno change (2h)
Color differenceΔE≤2.0Color differenceΔE≤2.0
MEK≥100 timesMEK≥150 times


3004 Color Coated Aluminum Coil Alloy Characteristics

Mechanical Properties

Tensile Strength: Typically ranges from 185-300 MPa, providing a good balance of strength and ductility.

Yield Strength: Approximately 150 MPa, which is higher than that of the 3003 alloy, giving it better formability.

Elongation: The alloy has good elongation properties, making it easy to form into various shapes without cracking.

Corrosion Resistance

The addition of manganese and magnesium improves the corrosion resistance of the 3004 alloy, making 3004 color coated aluminum coil suitable for outdoor and harsh environment applications.


3004 color coated aluminum coil application

3004 color coated aluminum coil with beautiful appearance, corrosion resistance, good weather resistance and other excellent properties, widely used in construction, transportation, electrical appliances, home appliances and other fields. In construction, 3004 color coated aluminum coil can be used for roof, wall, ceiling and other decorative materials; In traffic, it can be used for traffic lights, highway guardrail, etc. In electrical appliances, home appliances, can be used to manufacture refrigerators, ovens and other electrical products shell.


3004 color coated aluminum coil
