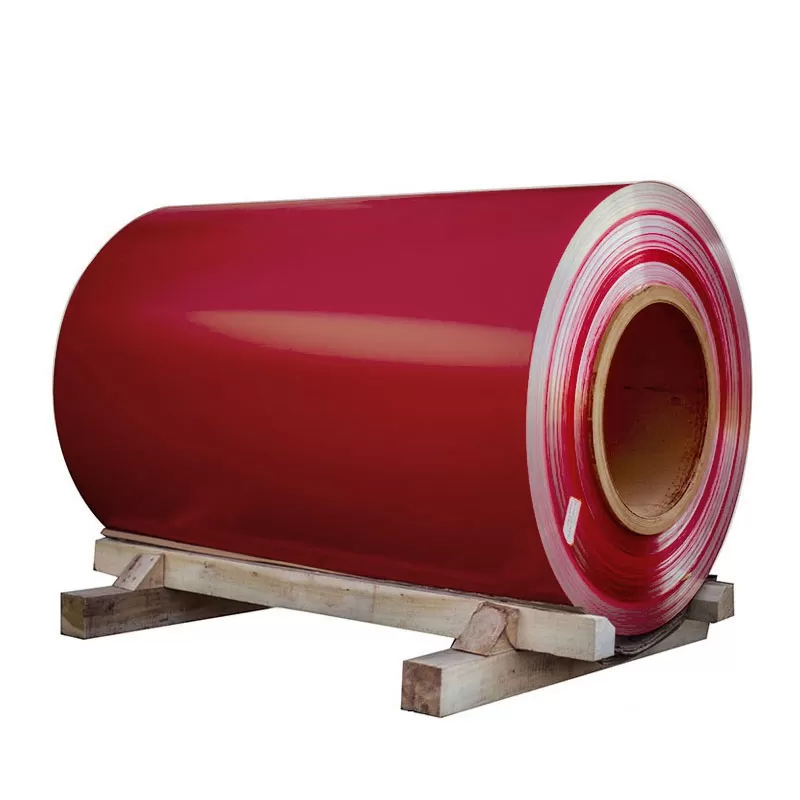

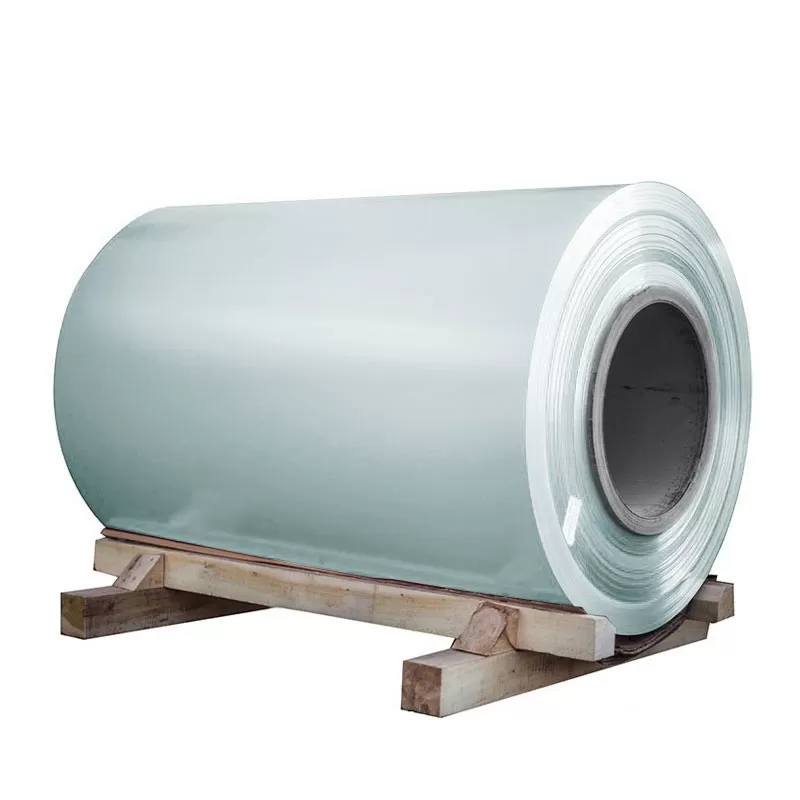

FEVE Color Coated Aluminum Coil

Series: AA1100 1060  3003 3105 3004 and 8011, etc.

Thickness: 0.016-1.5mm

Width: <1600mm

Warrantly   :  Regular PE: 3-5 years ;

                         High Performance PE: 6-9 years;

                         PVDF: 15 years ;

                         FEVE: Two coats: between 10-15 years ;

                         FEVE: Three coats: 15-20 years

Application: Aluminum-plastic composite panel, thermal insulation composite metal panel, building metal curtain wall, exterior wall decoration, aluminum-magnesium manganese alloy roof, 8011 metal roof, 3003 metal roof, 3004 metal roof, corrugated aluminum alloy roof, box partition, activity room, toll booth, pipe insulation

Product Description

About FEVE Color Coated Aluminum Coil

FEVE color coated aluminum coil, also known as fluorocarbon coating aluminum coil, FEVE color coated aluminum coil have its own advantage.and can maintain color stability for a long time.

Two times FEVE coating about: 10-15years

Three times FEVE coating about: 15-20years. Our factory also produces PE coated aluminum coil .


The Specification of FEVE Color Coated Aluminum Coil

ItemTest ItemStandardNational standardTest Result
1Color DifferenceGB/T-17748-2016ΔE≤2.0ΔE≤1.0
2Gloss DifferenceGB/T-17748-2016≤10≤5
3Coating ThicknessGB/T-17748-2016Two layers Min 23μm≥25μm
Three layers Min 30μm≥34μm
4Pencil HardnessGB/T-17748-2016≥HBHB
5T-bendGB/T-17748-2016≤2T≤2T
6AdhesionGB/T-17748-2016Grade 0Grade 0
7ImpactGB/T-17748-2016≥50kg.cm≥50kg.cm
8Boiling water ResistanceGB/T-17748-20162h No change4h No change
9Solvent ResistanceGB/T-17748-2016200 times paints remaining500 times no break
10Acidity ResistanceGB/T-17748-20165%HCL 24hrs No changeNo change
11Alkali ResistanceGB/T-17748-20165%NaOH 24hrs No change color △E≤2.0No change
12Nitric acid ResistanceGB/T-17748-2016△E≤5.0△E≤5.0
13Oil ResistanceGB/T-17748-201620#oil 24hrs No changeNo change
14Salt Spray ResistanceGB/T-17748-20164000hrs ≤Grade 1No change
15Abrasion resistanceGB/T-17748-2016≥5L/μm≥5L/μm
16Dirt ResistanceGB/T-17748-2016≤5%<5%
17Color retainingGB/T-17748-20164000 hrs△E≤4.04000 hrs △E≤3.0
18Gloss weaken Level4000 hrs ≤ Grade 24000 hrs ≤ Grade 2
19Chalking4000 hrsNo change4000 hrs No change


Advantage of FEVE Color Coated Aluminum Coil

FEVE coated aluminum coil is a premium material that boasts numerous advantages over traditional materials. Here are three clear benefits of using FEVE coated aluminum coil:

1. Exceptional Durability and Weather Resistance: The FEVE coating is a highly durable and weather-resistant material that can withstand even the harshest outdoor environments.

2. Spectacular Aesthetic Appeal: FEVE coated aluminum coil is available in a wide range of vibrant colors and finishes, making it an ideal choice for architectural and decorative applications.

3. Enhanced Sustainability: FEVE coated aluminum coil is an environmentally-friendly option, with a low carbon footprint and the ability to be recycled.


Advantages of FEVE in Color Coated Aluminum Coils

Excellent weather resistance

FEVE coating has excellent weather resistance due to its fluorocarbon structural characteristics. It can effectively resist ultraviolet rays, acid rain, chemical corrosion and atmospheric pollution, maintain color stability and surface finish for a long time, making feve color coated aluminum coil suitable for long-term use in outdoor environments.

High gloss and smoothness

Feve color coated aluminum coil usually has a high gloss and smooth and uniform texture. This not only improves the visual beauty of aluminum coil, but also enhances its modern sense, which is suitable for architectural decoration and billboard production with high requirements for appearance.

Excellent anti-pollution

FEVE coating has good self-cleaning properties, can effectively resist the adhesion of pollutants such as dust and oil, reduce the frequency and cost of cleaning and maintenance of feve color coated aluminum coil, and maintain long-term appearance.

Environmental performance

During the manufacturing process, the materials used in FEVE coating have low volatile organic compounds (VOCs) emissions and meet environmental protection standards. Its durability and recyclability also make it a choice for sustainable building materials.


Applications of FEVE  Color Coated Aluminum Coil

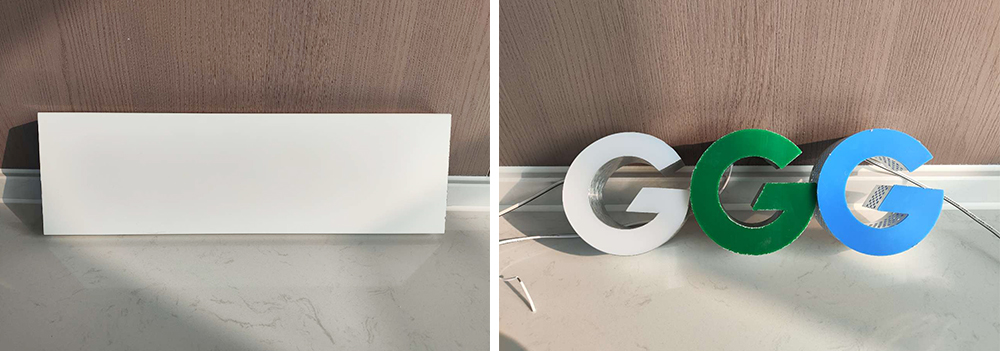

Good plasticity, machinability and beautiful color make it an ideal material for a variety of construction material:aluminum composite panel, aluminum honeycomb, fireproof veneer, aluminum ceiling, shutters, roller shutter door,building curtain walls, decoration, advertising signs etc.


FEVE Color Coated Aluminum Coil
