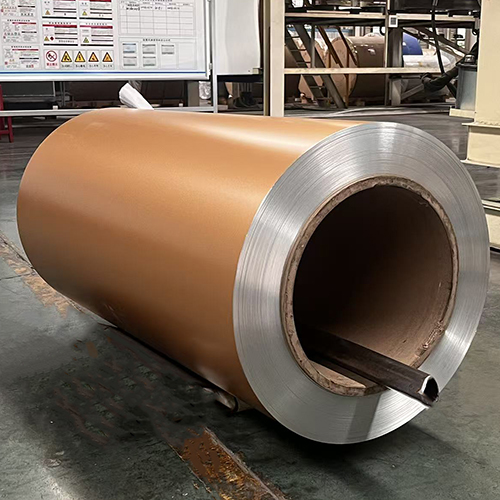

Featured Image | Color coated aluminum coils with roofing and wall panel samples |
Image Alt Text | Color coated aluminum coil for roofing and cladding projects |
Color coated aluminum coil—also called pre-painted aluminum coil—is a factory-finished aluminum roll used to produce roofing sheets, ceiling panels, wall cladding, gutters, fascia, shutters, and decorative building components. It combines the light handling and natural corrosion resistance of aluminum with a uniform painted finish available in RAL colors, metallic shades, and wood-grain designs.
For contractors, distributors, and fabrication factories, the key is not simply finding a coil. The right purchase decision depends on coating system, thickness, width, coil size, color selection, and the climate where the final product will be installed.
· Lightweight handling: aluminum is easier to transport, lift, slit, and roll form than many heavier metal systems.
· Corrosion resistance: aluminum naturally forms a protective oxide layer, making it suitable for many outdoor building applications.
· Consistent finish: coil coating applies primer and decorative paint in a controlled factory process, creating a more uniform finish than site painting.
· Design flexibility: solid RAL colors, matte finishes, metallic shades, and wood-grain effects support both commercial and residential projects.
· Efficient fabrication: coils can be slit to narrow widths or roll formed into roofing profiles, ceiling panels, and cladding products.
Item | Available Options | Buying Guidance |
Thickness | 0.4 / 0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1.0 mm | For roofing, 0.6–0.8 mm is commonly selected; for ceilings, 0.4–0.5 mm is often sufficient. |
Width | 1000 / 1200 / 1220 / 1250 mm | Confirm the exact width required by your roll-forming or slitting line. Narrow strips can be supplied by slitting. |
Coil Inner Diameter | 505 mm (mainstream) / 405 mm | Match the ID to your unwinding equipment. |
Coil Weight | 1–5 tons, customizable | Choose a practical coil weight based on handling equipment, container loading, and production speed. |
Coating | PE polyester / PVDF fluorocarbon | PE is a cost-effective general-purpose option; PVDF is preferred for demanding outdoor environments. |
Color | RAL colors, metallic colors, wood grain | Confirm color code, gloss, surface finish, and whether a physical sample is required before production. |
The coating system determines how the product performs after installation. A lower-priced coil is not always the best value if the project is exposed to intense sunlight, high humidity, salt air, or heavy rain.
Feature | PE Polyester Coating | PVDF Fluorocarbon Coating |
Positioning | Economical, general-purpose finish | Premium exterior architectural finish |
Weather Resistance | Suitable for interior, ceiling, and mild outdoor conditions | Better suited to high-UV, tropical, coastal, and high-end exterior projects |
Color Retention | Good for standard applications | Strong color and gloss stability for long-term exposure |
Typical Uses | Ceilings, indoor panels, decoration, budget roofing projects | Roofing, curtain walls, façades, coastal buildings, premium developments |
Value Logic | Lower initial cost | Higher initial cost, stronger long-term exterior performance |
Thickness should be selected according to the profile, span, wind load, handling process, and final use—not by habit alone.
· 0.4–0.5 mm: suitable for many ceiling, interior, and light decorative applications.
· 0.6–0.8 mm: a practical roofing range for many residential, commercial, and industrial projects.
· 0.9–1.0 mm: can be considered when the profile or project conditions require additional rigidity.
· Custom slitting: narrow widths can be produced for gutters, trims, shutters, and specialized fabrication lines.
The most commercially active colors in the current product range include Traffic White RAL9016, Signal White RAL9003, Anthracite Grey RAL7016, Iron Oxide Red RAL3009, Moss Green RAL6005, Silver Grey RAL7035, Champagne Gold RAL1035, and wood grain finishes in oak or walnut patterns.
White and silver-grey shades are versatile for large-volume projects. Anthracite grey is a strong choice for modern façades, while red and green tones work well for rural, industrial, and architectural roofing. Champagne gold and wood grain are better positioned for premium villas, resorts, and decorative façades.
A clear inquiry helps the supplier confirm coating line compatibility, color matching, packaging, and delivery time. Prepare the following information:
· Application: roofing, ceiling, wall cladding, gutter, shutter, or other fabricated product.
· Thickness, width, coil ID, and target coil weight.
· Coating system: PE or PVDF, plus any gloss or surface-finish requirements.
· Color: RAL code, color name, or physical sample reference.
· Processing method: slitting, cut-to-length, bending, stamping, or roll forming.
· Order quantity, destination country, port, and expected delivery schedule.
In most building-material markets, the two terms are used interchangeably. Both refer to aluminum coil that has been cleaned, pretreated, primed, painted, and cured before fabrication.
Yes, PE coated coil can be used for suitable outdoor applications, especially where the environment is mild and the budget is limited. For coastal, tropical, high-UV, or premium long-life projects, PVDF is usually the safer choice.
This product range includes 1000, 1200, 1220, and 1250 mm widths. The final width should match the buyer’s roll-forming machine and panel design.
For high-volume interior or budget-conscious projects, PE coated aluminum coil offers a practical balance of appearance and cost. For roofing, curtain walls, coastal developments, and other exposed exterior projects, PVDF coated coil provides stronger weather and color-retention performance.
Ready to specify your project? Send your thickness, width, coating system, RAL color, coil size, and destination market to receive a matched quotation and color sample recommendation. |
