As a buyer, you need to know:1.The aluminum coil is the "skeleton" of the painted aluminum coil.
Its quality determines the final product’s performance and lifespan.

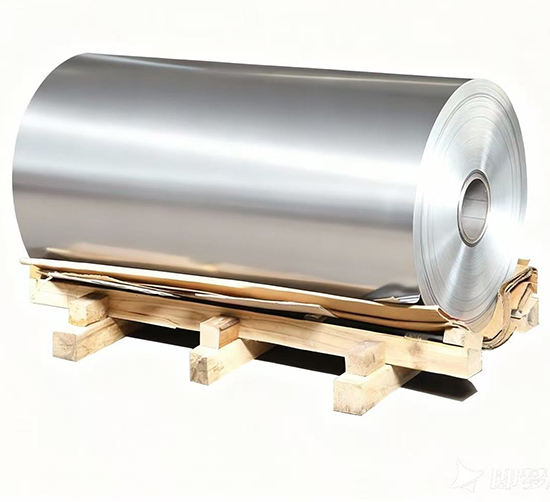

Essence: A continuous rolled aluminum material.It is made from aluminum ingots through hot or cold rolling.
Standard Aluminum Coil: Made from ≥99% pure primary aluminum.
Stable composition.
Reliable performance.
Recycled Aluminum Coil: Uses scrap aluminum.
Lower cost. But high risk of impurities.
Leads to uneven strength and corrosion.
Risk Avoidance: For high-quality projects (like curtain walls or appliances).
Always specify primary aluminum.
Request material certification.
The alloy defines the coil’s core properties.
Choosing the wrong alloy is a critical mistake.
| Alloy Series | Key Features | Typical Uses | Buyer’s Advice |
| 1xxx (e.g., 1100) | High purity. Good corrosion resistance. Low strength. | Appliance liners, simple signs. | Low cost. Not for structural or bending parts. |
| 3xxx (e.g., 3003) | Aluminum-manganese alloy. Excellent rust resistance. Good formability. | Building roofs/walls, panels. | Most common in construction. Balanced performance. |
| 5xxx (e.g., 5052) | Aluminum-magnesium alloy. High strength. Resists seawater corrosion. | Ships, vehicles, deep-drawn parts. | Ideal for frequent bending or salty environments. |
This affects internal quality and cost.
Process: Heated above recrystallization temperature.
Traits: Tough. Good for deep drawing. Less precise surface.
Use: Great for deep-stamped products (pots, lamp covers).
Process: Rolled at room temperature.
Traits: Smooth surface. High precision. Harder. Less flexible.
Use: Perfect for high-surface demands (curtain walls, appliance panels).
Need deep drawing? → Choose hot rolled.
Need a perfect surface? → Choose cold rolled.

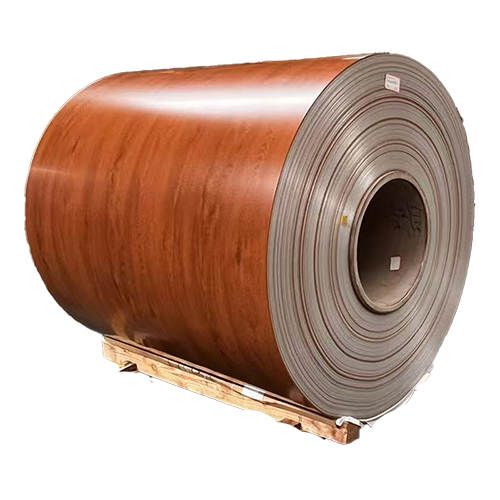

The coating is the "clothing" for the coil.
It must be durable and beautiful.
Polyester (PE): Cost-effective. Good weather resistance.
Suitable for most buildings and appliances.
PVDF: Super durability. Resists UV. Lasts over 20 years.
A must for high-rise buildings or harsh climates.
Don’t use PE instead of PVDF to save money in high-end projects.
Many later problems start with the base coil.
| Later Issue | Possible Base Cause | How to Avoid It |
| Coating peeling | Dirty base surface. Poor pre-treatment. | Check pre-treatment line. Ask for adhesion test reports. |
| Panel warping | Uneven thickness. Poor annealing. | Specify tight thickness tolerance (±0.02mm). Ask about annealing. |
| Surface defects | Scratches or dents on the base coil. | Inspect base coil before ordering. |
| Early corrosion | Recycled aluminum. Wrong alloy choice. | Use primary aluminum. Choose the right alloy. |
A clear path for your decision:
1.Define the end use: Curtain wall? Appliance? Deep-drawn part?
2.Identify key needs: Strength? Corrosion resistance? Formability?
3.Choose the alloy:
Building envelope → 3003
Marine/vehicle/deep-draw → 5052
Interior signs → 1100
4.Pick the process:
Perfect surface → Cold rolled
Deep forming → Hot rolled
5.Select the coating:
Normal use → PE
Harsh environment → PVDF
6.Finalize specs: Thickness, width, coating thickness. Put them in the contract.
7.Verify supplier: Ask for material certs and test reports. Visit the factory if possible.
