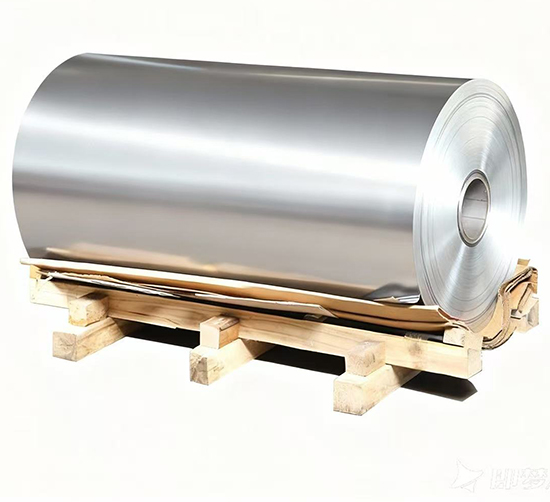

"What gauge is aluminum coil stock?" It's one of the most common questions in manufacturing, metal fabrication, and DIY projects. The short answer is that aluminum coil doesn't have a single gauge; it comes in a wide range of thicknesses, each suited for different applications. This is true for everything from bare mill finish to vibrant color aluminum coil.
Understanding aluminum coil gauge is critical because thickness directly impacts strength, formability, and cost. This guide will demystify the aluminum gauge system, provide a handy conversion chart, and help you select the right coil stock for your needs.
Aluminum coil stock is available in a vast spectrum of thicknesses, typically ranging from very thin foils (like 0.006 inches) to thick plates (over 0.250 inches). The specific "gauge" you need depends entirely on your project's requirements, whether it's for a structural component or a decorative color aluminum coil panel.
It's crucial to know that the "gauge" measurement (e.g., 16 ga, 20 ga) is not an absolute standard like millimeters or inches. The most common system used for aluminum and steel in the U.S. is the Manufacturers' Standard Gauge (MSG) for Sheet Steel. However, different materials and even different standards organizations have slightly varying gauge numbers for the same thickness.
For precision and to avoid errors, professionals always specify thickness in decimal inches or millimeters.
Below is a practical reference chart converting common aluminum gauge numbers to their corresponding thickness in inches and millimeters.
| Gauge Number | Thickness (Inches) | Thickness (Millimeters) | Common Applications |
| 10 ga | 0.1019" | 2.588 mm | Heavy-duty truck bodies, structural components |
| 12 ga | 0.0808" | 2.052 mm | Industrial flooring, marine applications |
| 14 ga | 0.0641" | 1.628 mm | Automotive panels, trailer siding |
| 16 ga | 0.0508" | 1.290 mm | Very common for gutters, roofing, HVAC ducts |
| 18 ga | 0.0403" | 1.024 mm | Common for electronic enclosures, craft projects |
| 20 ga | 0.0320" | 0.813 mm | Appliance skins, light-duty enclosures |
| 22 ga | 0.0253" | 0.643 mm | Decorative trim, model building |
| 24 ga | 0.0201" | 0.511 mm | Picture frames, craft metal |
| 26 ga | 0.0159" | 0.404 mm | Lithographic printing plates |
| 28 ga | 0.0126" | 0.320 mm | - |
Note: Gauge thicknesses below 28 are often referred to as foil. This includes specialized products like painted aluminum foil used in packaging and insulation.
The confusion around gauge systems arises because there isn't one universal standard.
Manufacturers' Standard Gauge (MSG): This is the de facto standard for sheet steel and is commonly applied to aluminum sheet and coil in the U.S. The numbers in the chart above are based on the MSG system. This applies to both raw and finished products like painted aluminum coil.
Brown & Sharpe (B&S) / American Wire Gauge (AWG): This system is primarily for non-ferrous metals like copper and brass. Using this for aluminum would give you a different thickness for the same gauge number.
H3: The Professional's Recommendation: Use Decimal Measurements
To eliminate all ambiguity, the best practice is to bypass gauge numbers altogether for critical specifications. This is especially important when specifying a coated aluminum coil, where the coating thickness must also be accounted for. Always order and design using decimal inches (e.g., 0.040") or millimeters (e.g., 1.0 mm). This ensures absolute accuracy and prevents costly mistakes in sourcing and manufacturing.
Selecting the correct thickness is a balance between strength, weight, formability, and budget.
Consider Your Application
Here’s a quick guide based on common uses:
Roofing & Siding: 0.032" (20 ga) is a standard minimum for walls, while 0.040" (18 ga) is common for roofs that require more strength. Standing seam roofs often use 0.050" (16 ga). This is a primary application for painted aluminum coil.
HVAC Ductwork: 0.028" to 0.032" (21-20 ga) is typical for residential and commercial ducts.
Gutters & Downspouts: 0.032" (20 ga) is standard, but 0.027" is also available for lighter-duty applications.
Automotive Panels: 0.036" to 0.050" (19-16 ga) is common for body panels, depending on the vehicle.
Aerospace: Uses specialized high-strength alloys in thinner gauges, often specified in precise millimeters.
Other Factors Beyond Gauge
Remember, gauge/thickness is just one part of the specification. You must also consider:
Alloy: (e.g., 1100 for formability, 3003 for general purpose, 5052 for strength and corrosion resistance).
Temper: (e.g., O - annealed for bending, H14 - half hard for strength).
While the term "gauge" is useful for quick reference, it should not be the sole basis for your material decisions. For any professional project, always refer to the precise decimal or metric thickness to ensure you get the aluminum coil stock that perfectly matches your engineering and design requirements.
