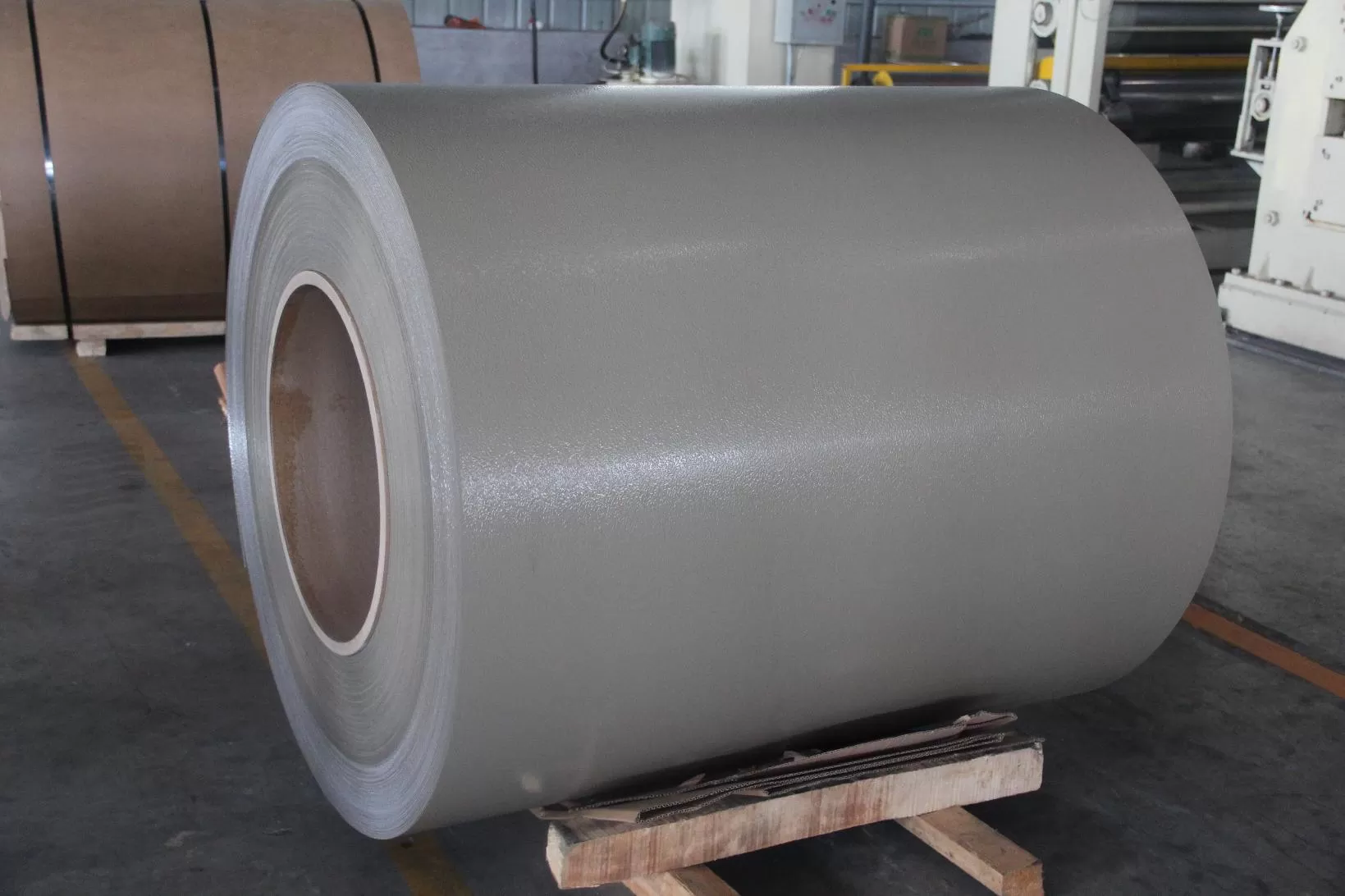

3D Color Coated Aluminum Coil

Series: AA1100 1060 3003 3105 3004 and 8011, etc.

Thickness: 0.016-1.5mm

Width: <1600mm

Warrantly   :  Regular PE: 3-5 years ;

                         High Performance PE: 6-9 years;

                         PVDF: 15 years ;

                         FEVE: Two coats: between 10-15 years ;

                         FEVE: Three coats: 15-20 years

Product Description

What Is 3D Color Coated Aluminum Coil?

3D color coated aluminum coil is based on a unique and advanced technique that gives it a stunning dimensional appearance. This technique involves using specialized paint materials which produce striking colors and patterns while also including a high-temperature baking stage to enhance the durability of the color. As a result, it has a distinctive and stylish finish that resists corrosion, weathering, and fading effectively. Architects, designers, and builders prefer this 3D color-coated aluminum coil when they aim to create structures that are both visually appealing and durable.

3D Color Coated Aluminum Coil Advantages

3D Effect

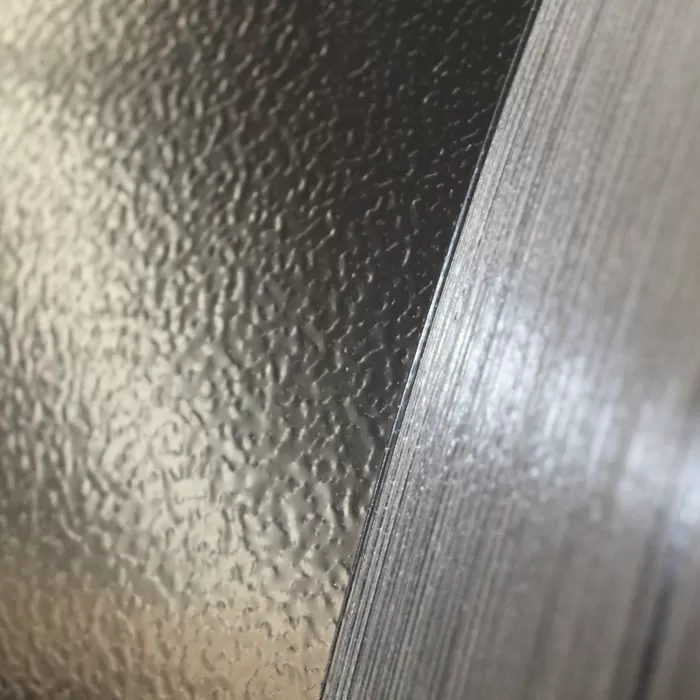

Different from traditional flat-coated aluminum coils, 3D color coated aluminum coils form a three-dimensional visual effect on the surface through special processing technology, enhancing the beauty and appeal of the product.

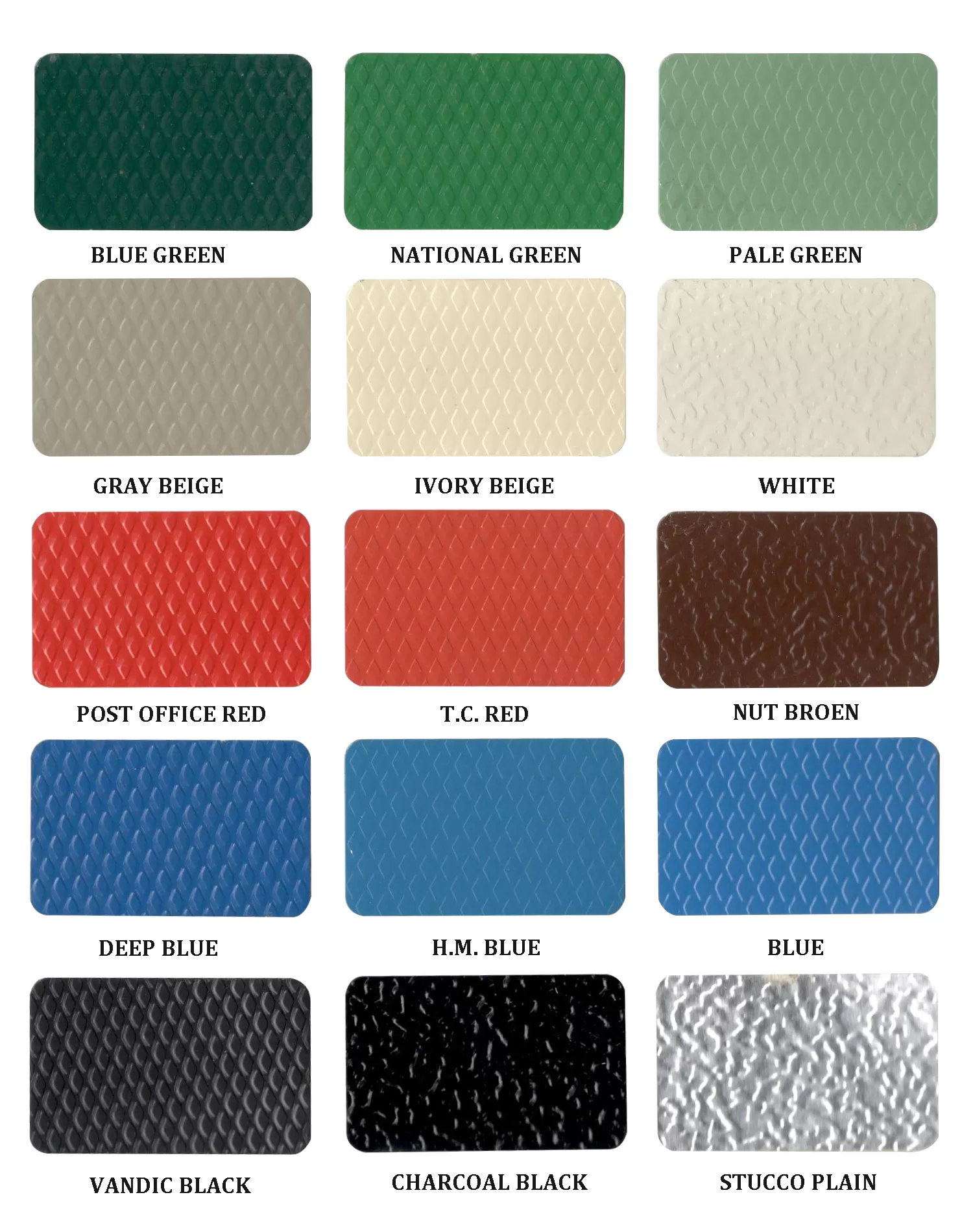

Since 3D color coated aluminum coil has a variety of color and pattern options and can be customized according to customer needs, it can meet the personalized design needs of different projects and provide customers with more choices and possibilities.

JINHU 3D Color Coated Aluminum Coil Technical Data:

ItemTechnical requirementsItemTechnical requirements
Thickness of coating film≥ 18 µmThickness of coating film≥ 25µm
Gloss deviationgloss<70, tolerance≤10%Gloss deviationgloss<70, tolerance≤10%
gloss≥70, tolerance≤5%gloss≥70, tolerance≤5%
Hardness of pencil≥3HHardness of pencil≥3H
Adhesionno lower than class 1Adhesionno lower than class 1
Boiling water resistanceno change (2h)Boiling water resistanceno change (2h)
Color differenceΔE≤2.0Color differenceΔE≤2.0
MEK≥100 timesMEK≥150 times

3D Color Coated Aluminum Coil Application

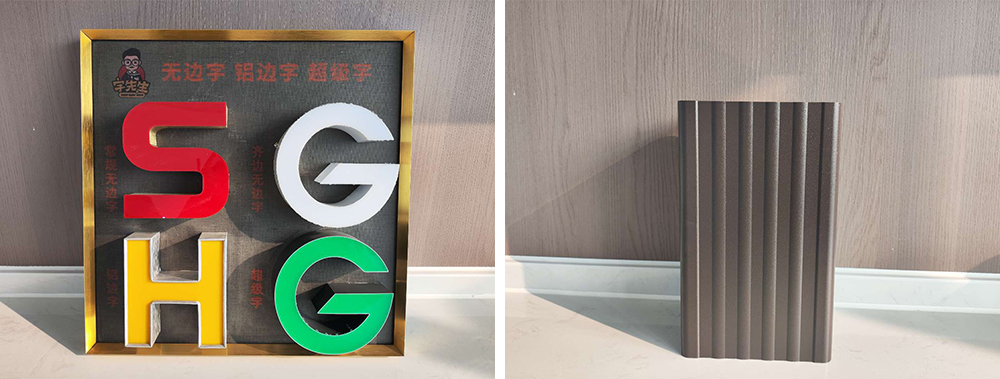

3D color coated aluminum coil with beautiful appearance, corrosion resistance, good weather resistance and other excellent properties, widely used in construction, transportation, electrical appliances, home appliances and other fields. In construction, 3D color coated aluminum coil can be used for roof, wall, ceiling and other decorative materials; In traffic, it can be used for traffic lights, highway guardrail, etc. In electrical appliances, home appliances, can be used to manufacture refrigerators, ovens and other electrical products shell.

3D color coated aluminum coil
