Series: AA8011
Thickness: 0.016-1.5mm
Width: ＜1600mm
Warrantly ： Regular PE: 3-5 years ；
High Performance PE: 6-9 years；
PVDF: 15 years ；
FEVE: Two coats: between 10-15 years ；
FEVE: Three coats: 15-20 years
Application: aluminum composite panel, aluminum honeycomb, fireproof veneer, aluminum ceiling, shutters, roller shutter door, etc.
Product Description

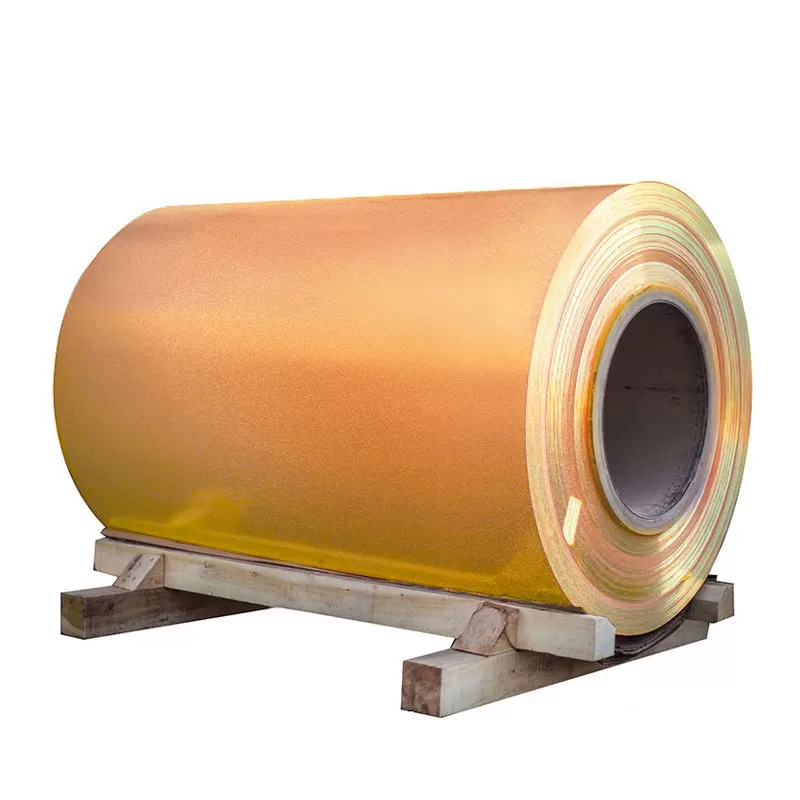

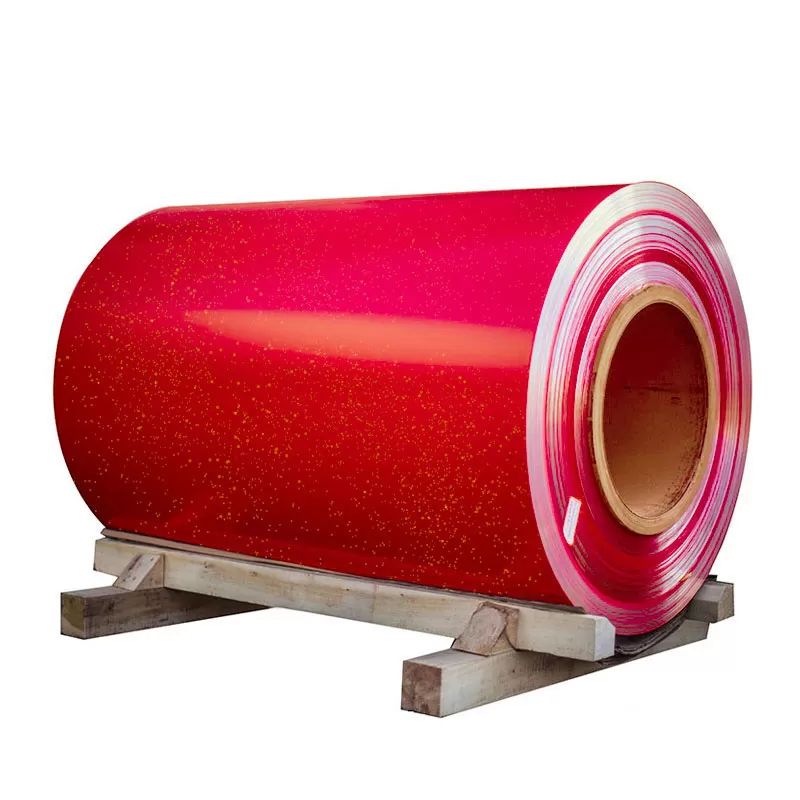

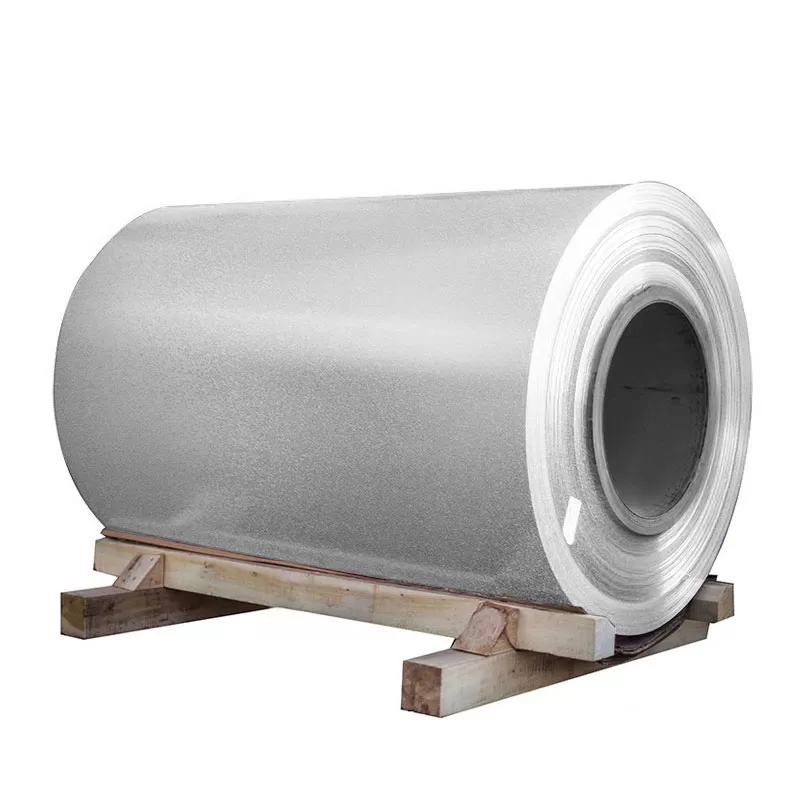

8011 color coated aluminum coil is a high-quality aluminum product made of AA8011 aluminum alloy as the base material and coated with different types of protective and decorative coatings. 8011 colored coated aluminum coil is an aluminum alloy with a high concentration of aluminum that has been coated with a unique blend of paints, allowing for a smooth and aesthetically pleasing finish. It is a popular choice in construction and manufacturing industries due to its durability, corrosion resistance, and thermal insulation propertie. Our factory also can produce PVDF color aluminum coil.
The 8011 color coated aluminum coil has four remarkable characteristics that make it a fantastic choice. Firstly, it has a beautiful appearance with a wide range of colors. Secondly, it is light, strong, and durable, making it perfect for building materials. Thirdly, it is highly resistant to corrosion and weathering, ensuring longevity and sustainability. Lastly, it is easy to process and maintain, making it suitable for a variety of applications. Thus, the 8011 color coated aluminum coil is a smart investment for any business or individual seeking quality and practicality..Regular PE: 3-5 years High performance PE: 6-9 years PVDF: 15 years FEVE: Two coats: 10-15 years between three coats: 15-20 years.
| POLYESTER | PVDF | ||
| Item | Technical requirements | Item | Technical requirements |
| Thickness of coating film | ≥ 18 µm | Thickness of coating film | ≥ 25µm |
| Gloss deviation | gloss<70, tolerance≤10% | Gloss deviation | gloss<70, tolerance≤10% |
| gloss≥70, tolerance≤5% | gloss≥70, tolerance≤5% | ||
| Hardness of pencil | ≥3H | Hardness of pencil | ≥3H |
| Adhesion | no lower than class 1 | Adhesion | no lower than class 1 |
| Flexibility | ≤2T | Flexibility | ≤2T |
| Boiling water resistance | no change (2h) | Boiling water resistance | no change (2h) |
| Color difference | ΔE≤2.0 | Color difference | ΔE≤2.0 |
| MEK | ≥100 times | MEK | ≥150 times |
8011 color coated aluminum coil is widely used in many aspects due to its excellent performance and diverse coating options. In the field of construction, color coated aluminum coil can be used for decorative materials such as roofs, walls, and ceilings. In the field of transportation, color coated aluminum coil can be used for traffic lights and highway guardrails. In the field of electrical appliances and home appliances, color coated aluminum coil can be used to manufacture electrical housings such as refrigerators and ovens. For example:
Aluminum composite panel: 8011 color coated aluminum coil can be used as building exterior wall and interior materials, providing excellent decorative effects and protective performance.
Aluminum honeycomb panel: used for high-end construction and decoration, with good flatness and mechanical properties.
Fireproof board: suitable for building materials that require high fire protection level, effectively improving safety.
Aluminum ceiling: used for indoor ceiling decoration, lightweight and easy to install.
Blinds and rolling shutters: provide beauty while having good durability and wind resistance.
