Series: AA1100, 3003, 3004, 3105, 5006, 5052, 8011, etc.
Thickness: 0.016-2.5mm
Width: <2300mm
Warrantly : Regular PE: 3-5 years ;
High Performance PE: 6-9 years;
PVDF: 15 years ;
FEVE: Two coats: between 10-15 years ;
FEVE: Three coats: 15-20 years
Application: Doors and Windows
Product Description
Exterior window trim (capping) requires a substrate that balances structural rigidity with the high ductility needed for sharp-radius bending. Our aluminum coils are specifically metallurgical-tuned for the siding and
window industries, providing a weather-tight, maintenance-free cladding solution that protects wood and vinyl sub-frames from moisture infiltration and UV degradation.
Designed for residential and light commercial applications, this manganese-alloyed series is the industry standard for field-forming.
Brake Compatibility: Optimized for portable brakes, ensuring 90° or 180° bends without "orange-peeling" or surface crazing.
Yield Strength: Balanced to maintain its shape against wind-load while remaining easy to manipulate onsite.
For coastal installations (North America) or high-intensity urban environments (Middle East), the 5052 series offers superior magnesium-based corrosion resistance.
Salt-Spray Performance: Rated for 3,000+ hours of salt-fog testing.
Enhanced Rigidity: Ideal for larger commercial window sills and wider fascia profiles where oil-canning must be minimized.
PVDF (Kynar 500®): The definitive choice for the Middle East and Central Asian markets. Our PVDF coatings provide an ultra-durable finish that resists the chalking and fading associated with extreme UV exposure and desert sand abrasion.
High-Performance Polyester (PE): A multi-coat system designed for North American residential projects, offering excellent mar-resistance during installation and a vast palette of architectural color matching.
Tension-Leveled Flatness: Every coil undergoes precision tension leveling to ensure absolute flatness, eliminating the "wavy" appearance often seen in inferior trim materials.
Flexible Paint Chemistry: Our coatings are formulated with high-elasticity resins that expand during the bending process, preventing the micro-fractures that lead to edge-creep and oxidation.
UV-Stable Strippable Film: Provided with a 2-mil to 3-mil pressure-sensitive protective film. It acts as a shield during slitting and brake-forming and peels off cleanly without adhesive transfer, even after days of onsite sunlight exposure.
Wash Coat Backing: The underside of the coil is treated with a protective primer to prevent galvanic corrosion when the trim comes into indirect contact with dissimilar materials.
Thickness Portfolio: * 0.019" (0.48mm): The North American standard for residential window wrap.
0.024" (0.61mm): Heavy-duty commercial grade for increased impact resistance.

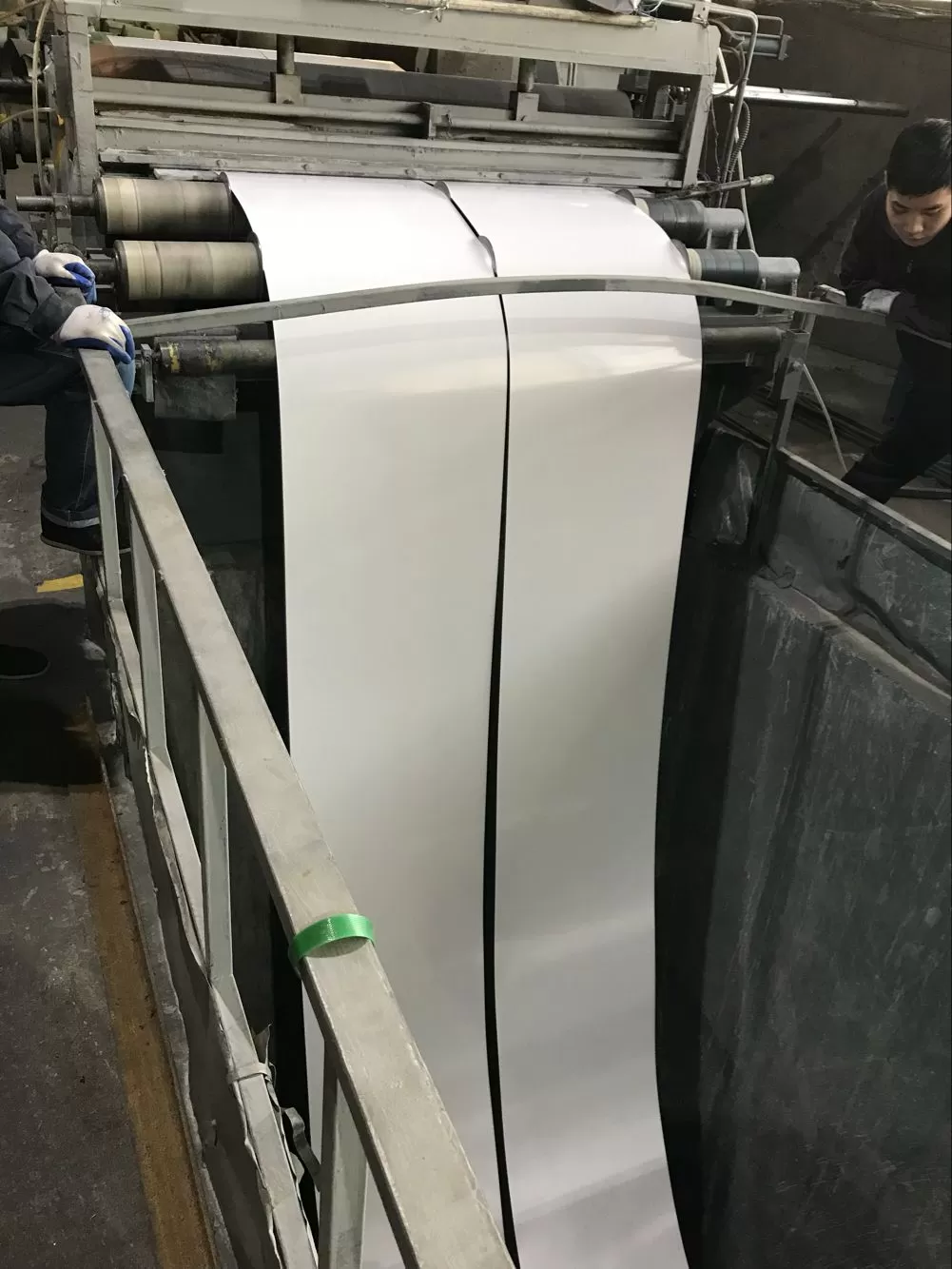

Slitting Capabilities: Precision slit-to-width (e.g., 14", 20", 24") with a ±0.01mm tolerance.
Color Standards: Available in RAL, AAMA-spec colors, and custom matches including matte and low-gloss architectural finishes.
We provide a comprehensive documentation package for every shipment, ensuring smooth customs clearance and project approval:
ASTM B209 / EN 485 Compliance: Verified chemical and mechanical testing.
AAMA 2605 Certification: For high-performance architectural coatings.

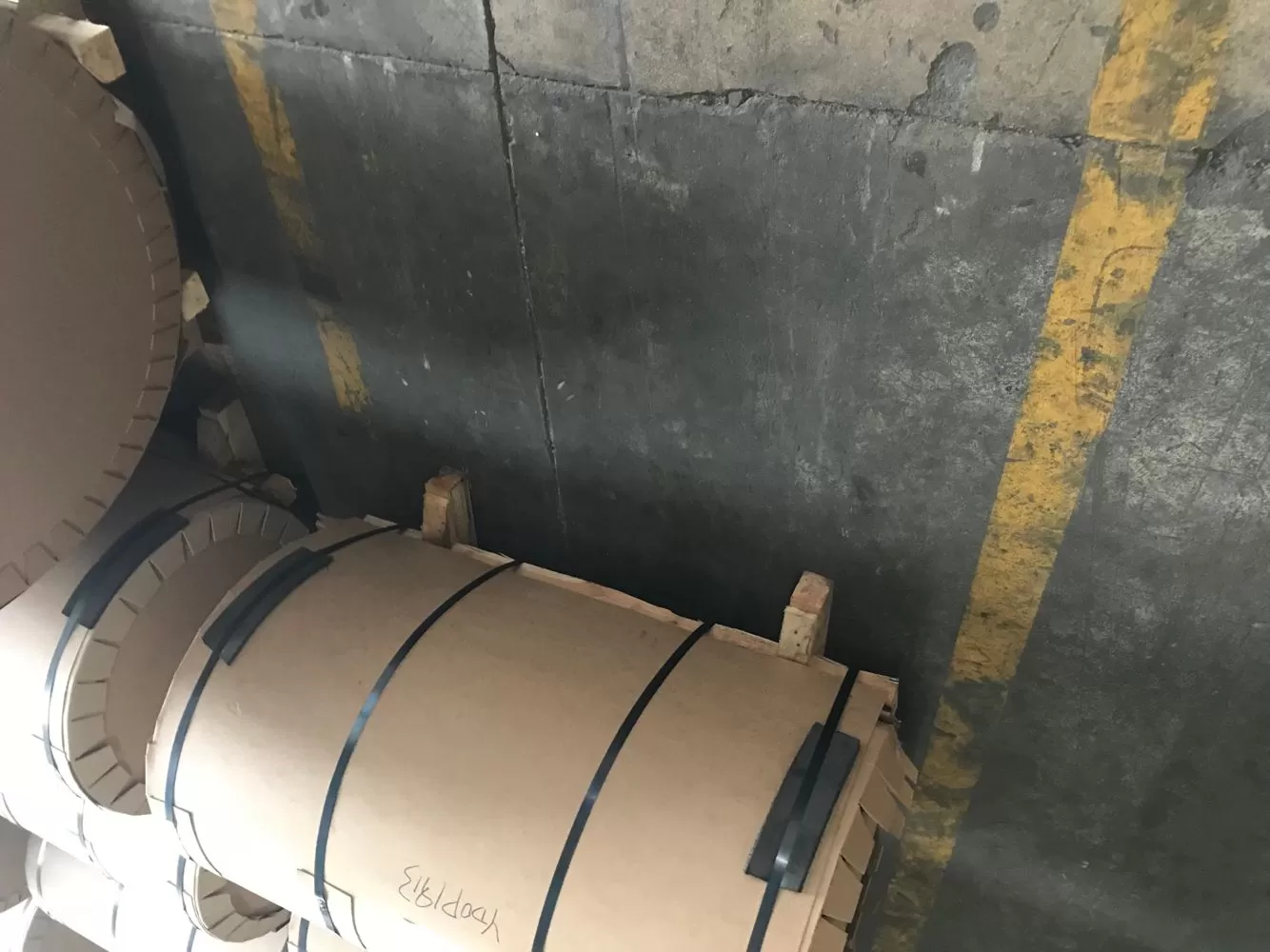

Packaging: Vertical (eye-to-sky) or horizontal (eye-to-wall) packaging on heat-treated ISPM-15 pallets, utilizing multi-layer moisture barriers for sea freight.
Based in a global manufacturing hub, we provide factory-direct supply to distributors and large-scale contractors in Toronto, Dubai, Almaty, and beyond.
