Series: AA1100, 3003, 3004, 3105, 5006, 5052, 8011, etc.
Thickness: 0.016-1.5mm
Width: <1600mm
Warrantly : Regular PE: 3-5 years ;
High Performance PE: 6-9 years;
PVDF: 15 years ;
FEVE: Two coats: between 10-15 years ;
FEVE: Three coats: 15-20 years
Application: Doors and Windows
Product Description
Aluminum window wrapping—often referred to as window capping—demands a specific balance of metal ductility and coating resilience. Our 3003 and 5052 series aluminum coils are tempered specifically for field-forming with portable brakes, ensuring crisp architectural lines without stress-cracking or paint delamination.
The most widely specified alloy for residential window wrapping in North America. It offers the ideal yield strength for manual brake-forming, providing enough rigidity to maintain its shape while remaining pliable enough for complex sills and brick-mold profiles.
Recommended for coastal installations in the Middle East and Gulf regions. This magnesium-alloyed coil provides superior resistance to salt-spray corrosion and higher structural wind-load capacity for high-rise commercial window cladding.
With extreme temperature fluctuations between summer and winter, our coils are tension-leveled to minimize oil-canning. The material handles thermal expansion and contraction without buckling, ensuring the window wrap remains flush against the casing year-round.
Standard coatings often chalk or fade under intense desert sun. We offer Kynar 500® PVDF finishes that maintain color integrity and gloss levels in high-UV environments, backed by an extensive fade-resistant warranty.
Brake-Ready Coating: Our proprietary paint formulation is designed to be "flexible." It stretches with the aluminum during the bending process, preventing the microscopic fractures that lead to premature oxidation.
Low-Gloss & Matte Finishes: Engineered to match major vinyl siding and window manufacturer colors while reducing glare and "metal look" reflections.
Strike-Resistant Film: Every roll comes with a pressure-sensitive, UV-stable protective film. This allows contractors to mark, cut, and bend the material without marring the finish, peeling off cleanly even after exposure to sunlight.
Thickness: 0.019" (0.48mm) for standard residential; 0.024" (0.61mm) for heavy-duty commercial.
Standard Widths: 14", 20", and 24" (Custom slitting available for specialized window profiles).
Surface Texture: Smooth or Cedar-Grain Embossed to replicate traditional wood trim aesthetics.
Color Matching: Available in over 50 architectural colors, including Charcoal, Bronze, and Bone White.
We maintain strict adherence to international building material standards:
ASTM B209: Standard specification for aluminum and aluminum-alloy sheet and plate.
AAMA 2604/2605: High-performance architectural coating compliance.
T-Bend Testing: Guaranteed 1T-2T bend performance without adhesion loss.
Salt Spray Testing: Up to 3,000 hours of resistance for PVDF-coated series.

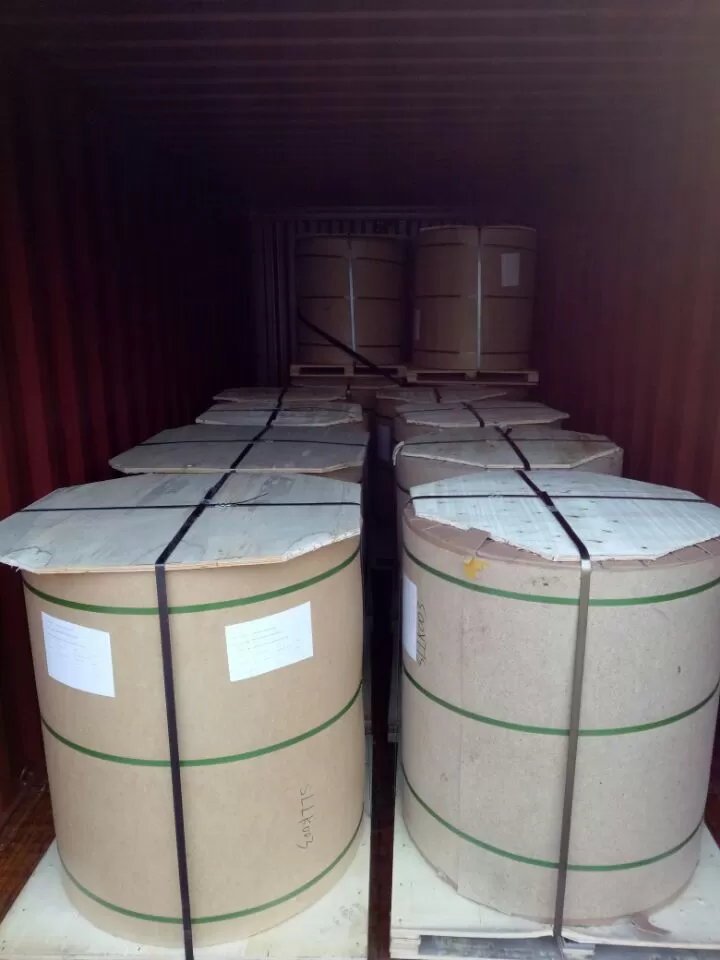

As a factory-direct supplier, we coordinate moisture-proof packaging for sea-freight, ensuring coils arrive in Middle Eastern, North American, and Central Asian ports without edge damage or "white rust" oxidation. Each shipment is accompanied by a Mill Test Certificate (MTC) verifying the chemical composition and temper.
Whether you are specifying for a large-scale housing project in Toronto or a commercial glazing contract in Dubai, we provide the technical data and samples required for your approval process.
