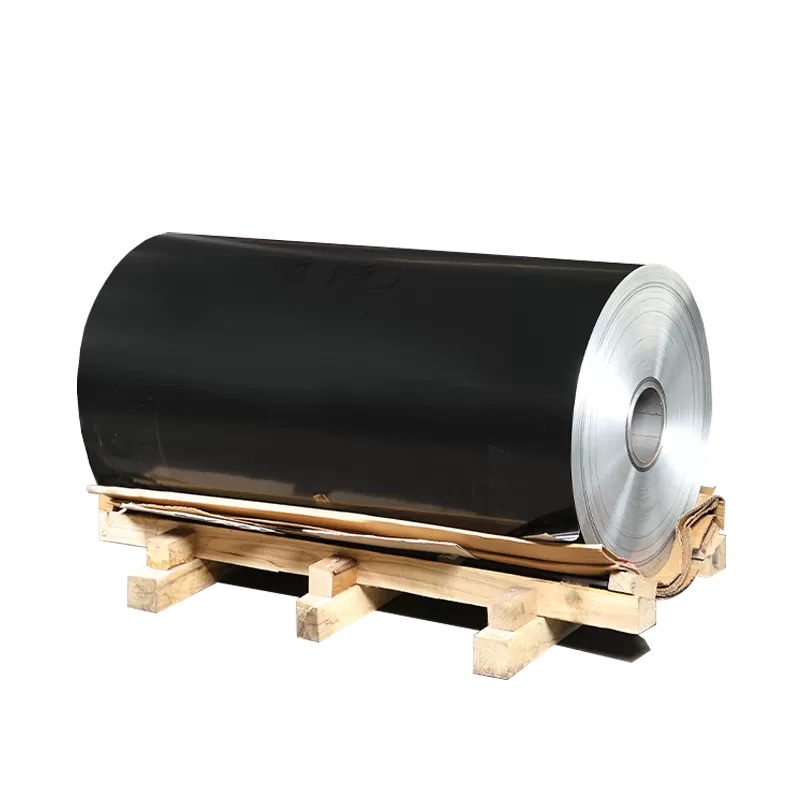

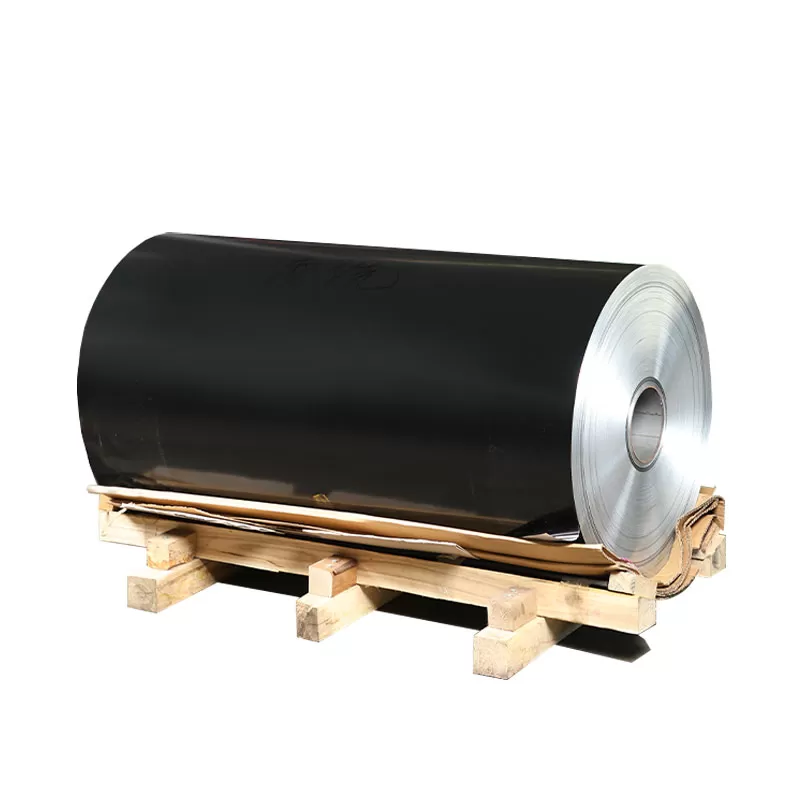

HDPE Color Coated Aluminum Coil

Series: AA1100, 3003, 3004, 3105, 5006, 5052, 8011, etc.

Thickness: 0.016-1.5mm

Width: <1600mm

Warrantly   :  Regular PE: 3-5 years ;

                        High Performance PE: 6-9 years;

                         PVDF: 15 years ;

                         FEVE: Two coats: between 10-15 years ;

                         FEVE: Three coats: 15-20 years

Application: laluminum composite panel, aluminum honeycomb, fireproof veneer, aluminum ceiling, shutters, roller shutter door, etc.

Product Description

HDPE Color Coated Aluminum Coil

HDPE Color Coated Aluminum Coil is an advanced painting system that uses fluorinated polymer resin as the main ingredient. This high-performance coating provides excellent weather resistance and durability against harsh environments. HDPE coated aluminum coil is a popular material for architectural decoration, exterior cladding, and signage applications due to its vibrant colors, outstanding gloss, and long-lasting performance.PVDF paint is guaranteed about10-15 years.Our factory also produce PE Color Coated Aluminum Coil.


The Performance of HDPE Color Coated Aluminum Coil

ItemTest ItemStandardNational standardTest Result
1Color DifferenceGB/T-17748-2016ΔE≤2.0ΔE≤1.0
2Gloss DifferenceGB/T-17748-2016≤10≤5
3Coating ThicknessGB/T-17748-2016Two layers Min 23μm≥25μm
Three layers Min 30μm≥34μm
4Pencil HardnessGB/T-17748-2016≥HBHB
5T-bendGB/T-17748-2016≤2T≤2T
6AdhesionGB/T-17748-2016Grade 0Grade 0
7ImpactGB/T-17748-2016≥50kg.cm≥50kg.cm
8Boiling water ResistanceGB/T-17748-20162h No change4h No change
9Solvent ResistanceGB/T-17748-2016200 times paints remaining500 times no break
10Acidity ResistanceGB/T-17748-20165%HCL 24hrs No changeNo change
11Alkali ResistanceGB/T-17748-20165%NaOH 24hrs No change color △E≤2.0No change
12Nitric acid ResistanceGB/T-17748-2016△E≤5.0△E≤5.0
13Oil ResistanceGB/T-17748-201620#oil 24hrs No changeNo change
14Salt Spray ResistanceGB/T-17748-20164000hrs ≤Grade 1No change
15Abrasion resistanceGB/T-17748-2016≥5L/μm≥5L/μm
16Dirt ResistanceGB/T-17748-2016≤5%<5%
17Color retainingGB/T-17748-20164000 hrs△E≤4.04000 hrs △E≤3.0
18Gloss weaken Level4000 hrs ≤ Grade 24000 hrs ≤ Grade 2
19ChalkingNo changeNo change


Types of HDPE Color Coated Aluminum Coil

HDPE coated aluminum coil is a type of aluminum coil that has been coated with a PVDF (Polyvinylidene fluoride) paint. This highly durable, weather-resistant coating is known for its high-quality finish, excellent adhesion, and resistance to fading, chalking, and cracking.

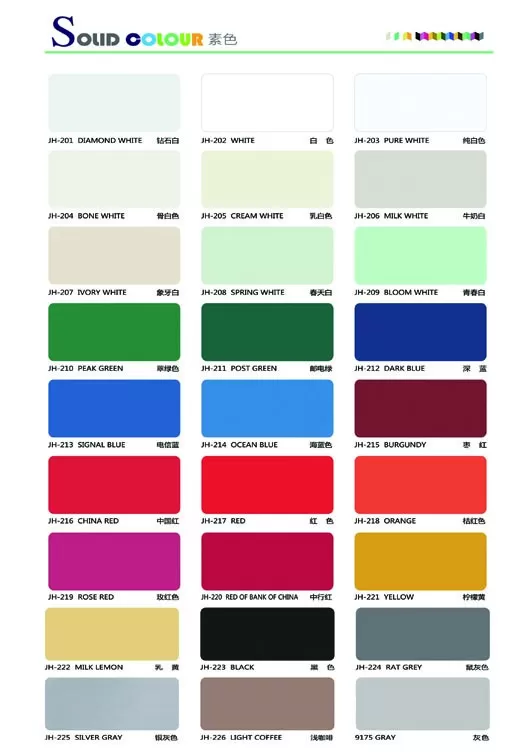

There are several classifications of HDPE coated aluminum coil including solid, metallic, stone, and wood grain finishes. Solid finishes are the most widely used and are available in a wide range of colors. Metallic finishes give the appearance of real metal and provide a distinctive look to buildings. Stone finishes mimic natural stone, while wood grain finishes imitate the look of real wood.


With its long-lasting durability, HDPE coated aluminum coil is used in a variety of applications, including building facades, roofing systems, and interior decoration. The diversity in its finishes makes it a popular choice for architects and designers seeking to create unique and stunning buildings.


HDPE Color Coated Aluminum Coil Application

Construction Industry

Exterior wall decoration: HDPE color coated aluminum coil can be used as building decorative panels, applied to exterior wall decoration, balcony decoration, etc.

Roof board: HDPE color coated aluminum coil can be used as roof board, which is lightweight and corrosion-resistant, suitable for various climate conditions, and also has fireproof and moisture-proof properties.

Automotive Industry

Body Panel: HDPE color coated aluminum coil is used for automotive exterior panels, such as doors, hoods, etc., which is lightweight and corrosion-resistant, can improve fuel efficiency and extend vehicle service life.

Roof and side decoration: used for roof and side decoration, providing a variety of color options to enhance the beauty of the car.

Logo and Advertising

Billboard: HDPE color coated aluminum coil is used to make outdoor billboards, with bright and long-lasting colors and not easy to fade. It can also be used to make road signs and other outdoor signs.


HDPE color coated aluminum coil has become an important material in modern architecture, automobiles, advertising signs, home appliances and other fields. It not only provides a beautiful appearance, but also has the advantages of durability, lightness, and corrosion resistance, meeting the various needs of various industries for materials.



Overall, HDPE coated aluminum coil offers a high-quality and long-lasting finish that adds value and appeal to any project.
