PE Aluminum Coils

PE Aluminum Coils

Home > Products > Paint Series > PE Aluminum Coils > PE Color Coated Aluminum Coil

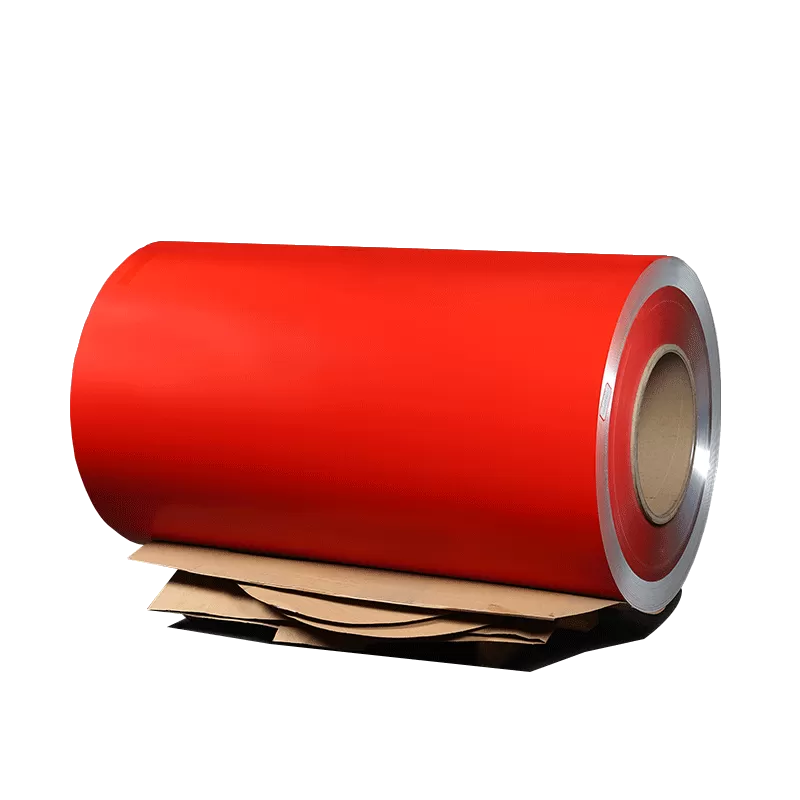

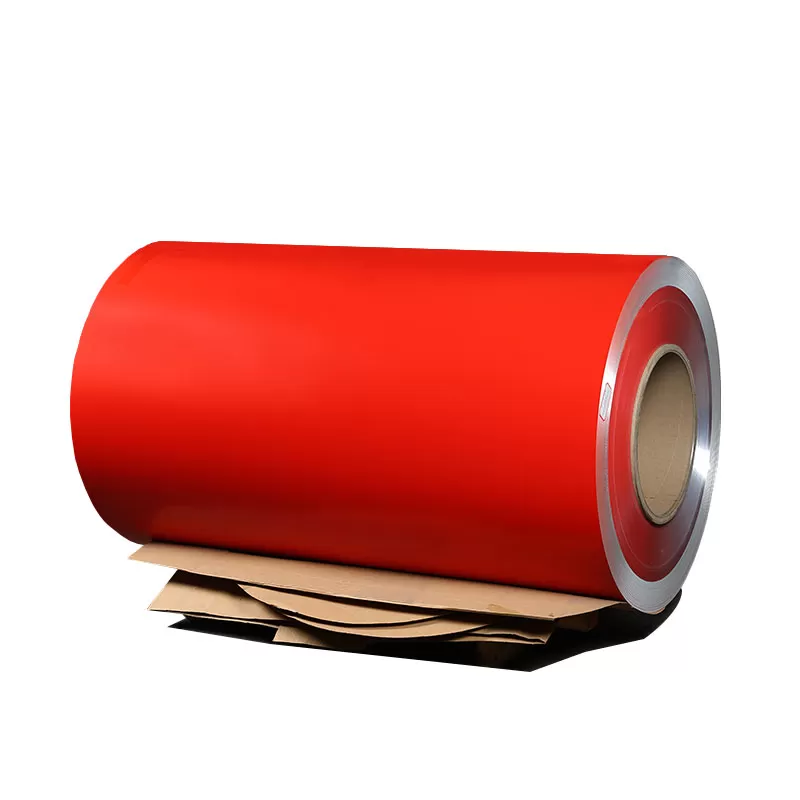

PE Color Coated Aluminum Coil

Series: AA1100, 3003, 3004, 3105, 5006, 5052, 8011, etc.

Thickness: 0.016-1.5mm

Width: <1600mm

Warrantly   :  Regular PE: 3-5 years ;

                         High Performance PE: 6-9 years;

                         PVDF: 15 years ;

                         FEVE: Two coats: between 10-15 years ;

                         FEVE: Three coats: 15-20 years

Application: aluminum composite panel, aluminum honeycomb, fireproof veneer, aluminum ceiling, shutters, roller shutter door, etc.

Product Description

About PE Painted Aluminum Coil

PE painted aluminum coil is of great gloss, smoothness. The PE coating has the property of decorative protection, which protects the building exposed to the atmosphere from the damage of ultraviolet radiation, wind, rain, frost and snow. Conventional PE: 3-5 years High performance PE: 6-9 years.Our factory aslo produces PVDF painted aluminum coil.

Aluminum AlloyAA1100.3003,3004,3105,etc
Coil thickness0.018-1.5mm
Coil width2000mm,standard 1240mm MAX 2020mm
Coil weight0.5 to 5.0 tons per coil
Surface treatmentPE&PVDF coating/ Embossed, mill finish, coated
colorwhite series,metallic series,dark series,gold series(accept color customs)  RAL/PANTONE or as JINHU  /color chart or customized

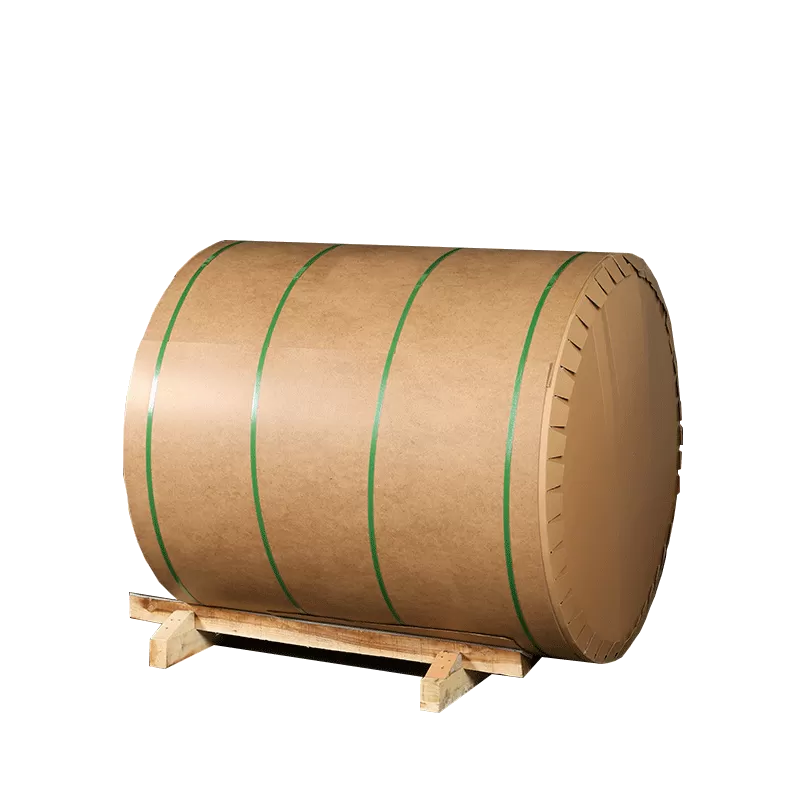

PackingStandard exporting packing/ or at buyer's requirement
Trade TermsFOB/CIF etc

Coating thickness14-28 microns(PE:≥14micron,pvdf:≥25micron)
Coils core diameter150mm,405mm,505mm
TemperO - H112
Brand NameJINHU
ItemTechinical requirementsItemTechinical requirements
Thickness of coating film≥18Flexibilty≤2T
Gloss deviationGloss<70.Limit of error≤10%
Gloss≥70.Limit of error≤5%
Boiling water resisitance2H No color change
Hardness pf pencil≥2HColor difference△E≤2.0
Adhesion≥1LeverMEK≥150 Times

Advantages of PE Painted Aluminum Coil?

Weather resistance: high gloss retention, good color stability and minimal change in color difference. Common PE paint is guaranteed about 3-5 years; PE paint is guaranteed about 6-9 years.

Environmental protection: it is resistant to salt, alkali, acid rain, rust and it has flame retardancy.

Decoration: We have rich colors and texture for you to choose.


The PE Painted Aluminum Coil has many uses, of which the most widely used is the production of aluminum plastic plate after the purchase of aluminum coil by the aluminum plastic plate factory.

PE Color Coated Aluminum Coil
