Series: AA1100, 3003, 3004, 3105, 5006, 5052, 8011, etc.
Thickness: 0.016-1.5mm
Width: ＜1600mm
Warrantly ： Regular PE: 3-5 years ；
High Performance PE: 6-9 years；
PVDF: 15 years ；
FEVE: Two coats: between 10-15 years ；
FEVE: Three coats: 15-20 years
Application: laluminum composite panel, aluminum honeycomb, fireproof veneer, aluminum ceiling, shutters, roller shutter door, etc.
Product Description

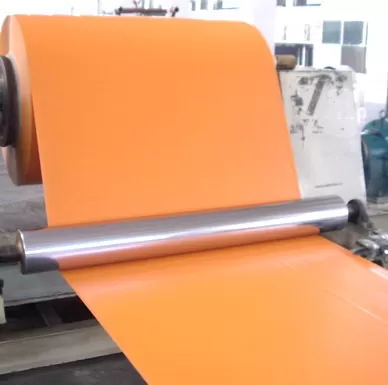

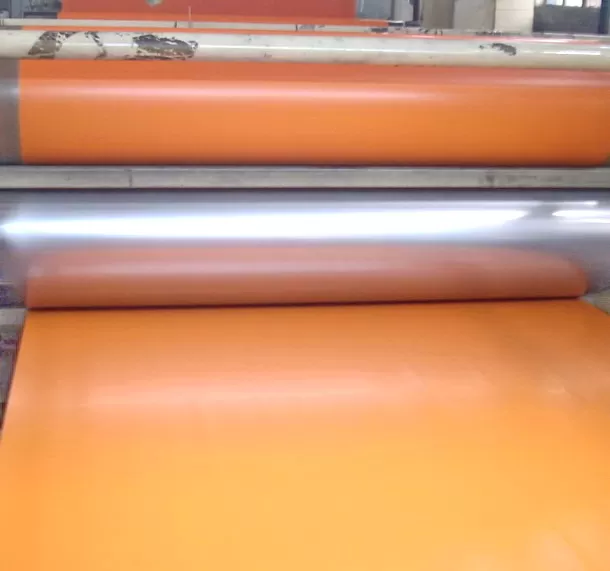

Make a powerful visual statement with our Orange Color Aluminum Coil. Engineered for high visibility, safety, and stunning aesthetic appeal, this pre-painted coil delivers a vibrant, consistent orange finish that stands out in any environment. Combining the functional benefits of aluminum with a bold, energetic color, it is the ideal choice for projects that demand to be noticed and last.
From critical safety applications to innovative architectural designs, our orange coil offers the perfect blend of striking appearance and long-term performance.
[(Button: Get a Custom Quote & Color Samples!)]
High-Visibility Safety: The bright orange color provides excellent contrast and visibility, making it ideal for safety signage, warning systems, and equipment where attention is critical.
Superior Weather Resistance: Our high-quality PVDF coatings ensure exceptional resistance to UV fading, chalking, and corrosion, keeping the orange color vibrant and intact for years, even in harsh outdoor conditions.
Excellent Formability: The underlying aluminum alloy allows for easy bending, rolling, and shaping without compromising the integrity of the paint coating, enabling complex designs and fabrication.
Cost-Effective Solution: arrives pre-finished, eliminating the need for costly and time-consuming post-painting processes, reducing overall production time and cost.
Sustainable Material: Aluminum is 100% recyclable, and our coating processes are environmentally compliant, supporting green building and manufacturing initiatives.
Our Orange Color Aluminum Coil is manufactured to meet rigorous international standards. The table below details our standard capabilities. We excel at custom orders.
| Specification Category | Details & Available Options | |
|---|---|---|
| Base Alloy | 1000 Series (1060, 1100), 3000 Series (3003, 3004), 5000 Series (5005, 5052) | |
| Temper | O (Annealed), H12, H14, H16, H18, H22, H24, H32 | |
| Thickness | 0.2 mm - 3.0 mm (0.008" - 0.118") | |
| Width | 100 mm - 2000 mm (4" - 79") | |
| Inner Diameter (I.D.) | 150 mm (6"), 405 mm (16"), 500/505 mm (20"), 610 mm (24") | |
| Coating Type | PVDF (Polyvinylidene Fluoride): Premium exterior durability. PE (Polyester): Robust performance for interiors and milder climates. | |
| Color Matching | All standard RAL Oranges (e.g., RAL 2004, 2008, 2010, 2011), Pantone, or custom color match. | |
| Coating Thickness | Top Coat: 20-25 μm | Total Paint System: 25-35 μm (Fully customizable) |
| Surface Finish | Glossy, Matte (Satin), Metallic | |
| Protective Film | Optional PE or PET protective film (one or two sides) to prevent scratches during processing. |
The vibrant and functional nature of orange makes it suitable for a wide array of uses:
Safety & Warning Systems: High-visibility safety signs, traffic control devices, construction zone barriers, and industrial safety equipment.
Architectural Accents: Building facades, curtain walls, entrance canopies, and decorative panels for a bold and modern design statement.
Transportation: School bus components, railway accents, utility vehicle markings, and RV detailing.
Consumer & Durables: Appliance accents, sporting goods, retail display units, and recreational products.
Industrial Equipment: Machinery housings, safety guards, and warehouse partitioning that requires high visibility.
We understand that color consistency and quality are critical. Here’s why you can rely on us:
Precision Color Matching: We expertly match RAL codes and custom color samples to ensure your orange is exactly what you envision, batch after batch.
Bulk Supply Capability: We efficiently handle large-volume orders for major projects, ensuring consistent color and timely delivery.
Technical Expertise: Our team can advise on the best alloy and coating combination for your specific application, whether it's for severe marine environments or interior décor.
Global Logistics: We are experienced in shipping to destinations worldwide with secure, protective packaging to ensure products arrive in perfect condition.
See the vibrant quality for yourself. We provide free color chips and material samples to help you make the right choice with confidence.
Contact us today with your project requirements for a competitive quote.
Let us know your preferred orange shade (e.g., RAL code), dimensions, and quantity.
Frequently Asked Questions (FAQ)
Q: Which orange is best for exterior use?
A: For long-term exterior durability, we strongly recommend a PVDF-coated coil. It offers the best protection against UV fading, ensuring the orange color remains vibrant for decades. RAL 2004 (Pure Orange) is a popular exterior choice for safety and visibility.
Q: Can I get a sample before placing a large order?
A: Absolutely. We encourage you to request free physical color chips and even small coil samples to test for color, formability, and quality before committing to a large order.
Q: What is the lead time for production?
A: For standard orange colors from stock, lead time can be as short as 7-10 days. Custom colors or large bulk orders may require 2-3 weeks. We always provide a firm lead time with your quote.
Q: Do you offer a warranty on the finish?
A: Yes, our PVDF-coated aluminum coils typically come with a 20-year finish warranty against chipping, peeling, and excessive fading, in accordance with AAMA 2605 standards.
