Series: AA1100, 3003, 3004, 3105, 5006, 5052, 8011, etc.
Thickness: 0.016-1.5mm
Width: ＜1600mm
Warrantly ： Regular PE: 3-5 years ；
High Performance PE: 6-9 years；
PVDF: 15 years ；
FEVE: Two coats: between 10-15 years ；
FEVE: Three coats: 15-20 years
Application: laluminum composite panel, aluminum honeycomb, fireproof veneer, aluminum ceiling, shutters, roller shutter door, etc.
Product Description

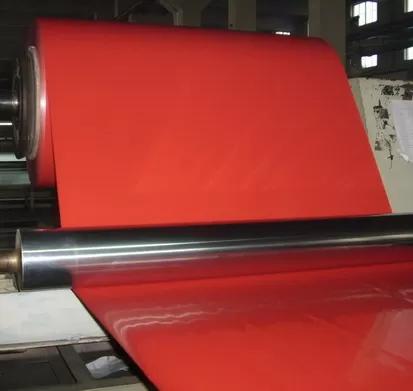

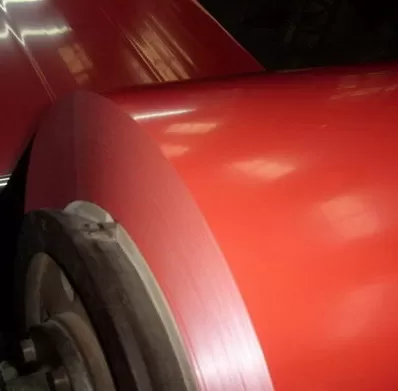

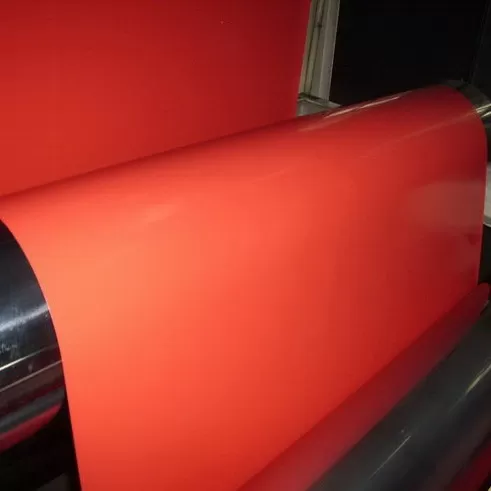

Ignite your designs with our Red Paint Aluminum Coil, the ultimate solution for projects that demand high visibility, powerful aesthetics, and long-lasting durability. This pre-finished coil combines a deep, vibrant red finish with the strength and versatility of aluminum, creating a material that performs as brilliantly as it looks.
Whether for striking architectural facades, critical safety signage, or consumer products that need to pop, our red coil delivers consistent color and unmatched resistance to fading and wear.
[(Button: Get a Custom Quote & Red Color Chart!)]
Intense, Long-Lasting Color: Our advanced coating technology uses high-grade pigments to create a rich, opaque red that resists UV fading. PVDF coatings ensure the color stays vibrant for decades, even in direct sunlight.
Exceptional Durability: Offers superior resistance to chipping, scratching, corrosion, and harsh weather conditions, making it a reliable choice for both interior and demanding exterior applications.
Cost-Efficient Production: arrives ready-to-fabricate, eliminating the need for and costs associated with post-painting, including VOC emissions, onsite labor, and facility requirements.
Design Flexibility: Available in a wide range of red shades—from bright fire engine red to deep burgundy—in various finishes (gloss, matte, metallic) to meet any design spec.
Sustainable Choice: Aluminum is 100% recyclable. Our coating processes are environmentally compliant, contributing to greener building and manufacturing initiatives.
Our Red Paint Aluminum Coil is manufactured to strict international standards. The table below details our standard capabilities. We excel at custom orders.
| Specification Category | Details & Available Options | |
|---|---|---|
| Base Alloy | 1000 Series (1060, 1100), 3000 Series (3003, 3004), 5000 Series (5005, 5052) | |
| Temper | O (Annealed), H12, H14, H16, H18, H22, H24, H32 | |
| Thickness | 0.2 mm - 4.0 mm (0.008" - 0.160") | |
| Width | 100 mm - 2000 mm (4" - 79") | |
| Inner Diameter (I.D.) | 150 mm (6"), 405 mm (16"), 500/505 mm (20"), 610 mm (24") | |
| Coating Type | PVDF (Polyvinylidene Fluoride): Premium exterior durability. PE (Polyester): Robust performance for interiors and milder climates. | |
| Color Matching | All standard RAL Reds (e.g., RAL 3000, 3001, 3003, 3013, 3020), Pantone, or custom color match. | |
| Coating Thickness | Top Coat: 20-25 μm | Total Paint System: 25-35 μm (Fully customizable) |
| Surface Finish | Glossy (e.g., 80% gloss), Matte (Satin), Metallic, Texture | |
| Protective Film | Optional PE or PET protective film (one or two sides) to prevent scratches during processing. |
The bold and functional nature of red makes it ideal for a diverse range of uses:
Architectural Cladding: Creating striking building facades, accent walls, canopies, and roofing elements for commercial and residential properties.
Signage & Branding: High-impact corporate signage, retail branding, logos, and directional signs that require strong visibility and recall.
Transportation: Automotive trim, bus panels, trailer siding, and RV components where aesthetics and durability are key.
Appliances & Consumer Goods: Housings for appliances, electrical enclosures, furniture, and decorative items where color is a critical design element.
Safety & Industrial Equipment: Warning labels, safety barriers, fire equipment housings, and machinery where red denotes caution or importance.
Choosing our red aluminum coil means investing in a product backed by expertise and reliable service:
Color Consistency: Advanced automated coating lines ensure perfect color match and uniformity across every order, which is crucial for large projects.
Technical Support: Our experts help you select the ideal alloy, temper, and coating system (PVDF vs. PE) for your specific application and environmental exposure.
Global Supply Chain: We reliably serve clients worldwide with flexible order quantities, from single master coils to large bulk orders, all with secure packaging.
Quality Assurance: Every batch undergoes rigorous checks for coating adhesion, color, gloss, and film integrity, supported by Mill Test Certificates.
See the vibrant quality for yourself. We provide free color chips and material samples to help you make the right choice with confidence.
Contact us today with your project requirements for a competitive quote. Let us know your preferred red shade (e.g., RAL code), dimensions, and quantity.
Frequently Asked Questions (FAQ)
Q: Will the red color fade over time?
A: Our PVDF-coated red coils are specifically engineered for extreme UV resistance. They come with industry-leading warranties (often 20+ years) against significant fading and chalking, per AAMA 2605 standards.
Q: Can you match my specific red brand color?
A: Yes, we specialize in custom color matching. Please provide a physical sample, RAL number, or Pantone code, and we will create a precise match for your approval.
Q: What is the minimum order quantity (MOQ)?
A: Our standard MOQ is one master coil. However, we offer flexibility. Please contact us to discuss your volume needs.
Q: What is the difference between a gloss and matte red finish?
A: A gloss finish provides a shiny, reflective surface that enhances color vibrancy. A matte (satin) finish offers a non-reflective, sophisticated look that hides fingerprints and surface imperfections well. We can advise on the best choice for your application.
