Product Description

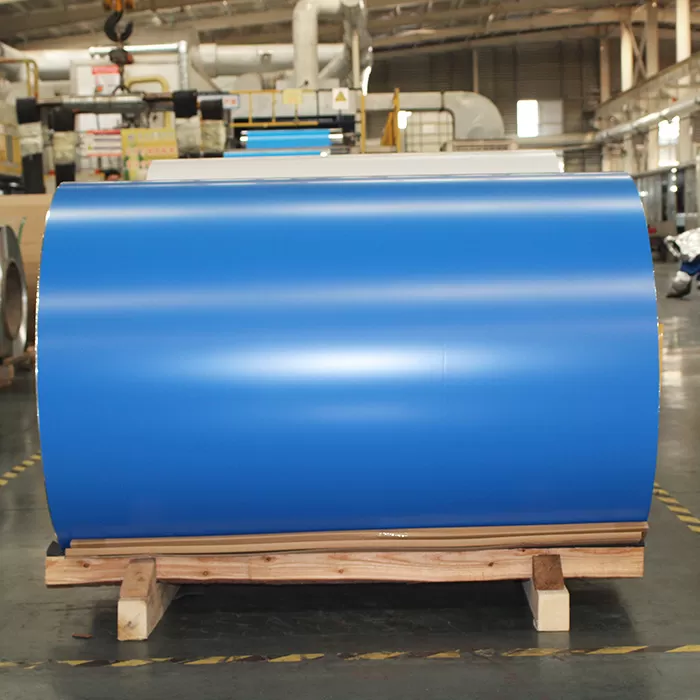

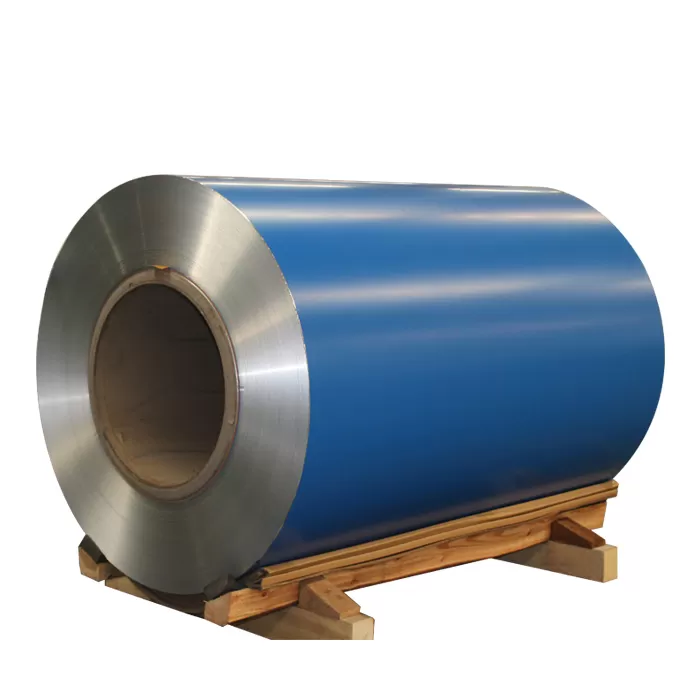

Telecommunication Blue Color Coated Aluminum Coil – High-Performance Solution for Telecom & Architectural Applications
Engineered specifically for the telecommunications industry, our Telecommunication Blue Color Coated Aluminum Coil combines exceptional weather resistance with perfect color consistency to meet strict industry standards. This high-grade material is also ideal for architectural cladding, signage, and industrial applications where durability and visual appeal matter.
✅ Precision Color Matching
Telecommunication blue (RAL 5015, Pantone 2945C) – industry-standard hue
Color stability (ΔE<1.5 after 4,000 hours QUV testing)
Uniform coating with no streaks or discoloration
✅ Engineered for Extreme Conditions
5,000+ hours salt spray resistance (ASTM B117)
PVDF or high-quality polyester coating options
-40°C to 120°C operational range – performs in all climates
✅ Telecom-Grade Performance
✔ RF transparent – minimal signal interference
✔ Non-corrosive – ideal for antenna enclosures
✔ Lightweight yet rigid – easier installation than steel
✅ Sustainable & Cost-Effective
100% recyclable aluminum core
Low maintenance – resists dirt accumulation
30% lighter than steel alternatives – reduces shipping costs
| Property | Specification |
|---|---|
| Material | AA3003 / AA5052 aluminum alloy |
| Thickness | 0.5mm - 3.0mm (±0.03mm tolerance) |
| Width | 600mm - 1600mm (custom available) |
| Coating | PVDF (70% resin) or Polyester (25μm) |
| Color Options | Standard telecom blue + 200+ RAL colors |
| Certifications | ISO 9001, RoHS, REACH, AAMA 2605 |
5G antenna enclosures & radomes
Telecom cabinet exteriors
Broadcast tower cladding
Architectural facades (matching telecom infrastructure)
Industrial equipment housing
Batch-to-batch color consistency – crucial for tower deployments
Pre-treatment process ensures superior coating adhesion
Custom fabrication available – pre-cut, formed, or perforated
Global logistics network – reliable delivery to project sites
Samples: Available in 200x300mm swatches (3 business days)
MOQ: 1 ton (custom colors 3 tons)
Lead Time: 10-15 days for standard orders
