Series: AA1100, 3003, 3004, 3105, 5006, 5052, 8011, etc.
Thickness: 0.016-1.5mm
Width: ＜1600mm
Warrantly ： Regular PE: 3-5 years ；
High Performance PE: 6-9 years；
PVDF: 15 years ；
FEVE: Two coats: between 10-15 years ；
FEVE: Three coats: 15-20 years
Application: aluminum composite panel, aluminum honeycomb, fireproof veneer, aluminum ceiling, shutters, roller shutter door, etc.
Product Description

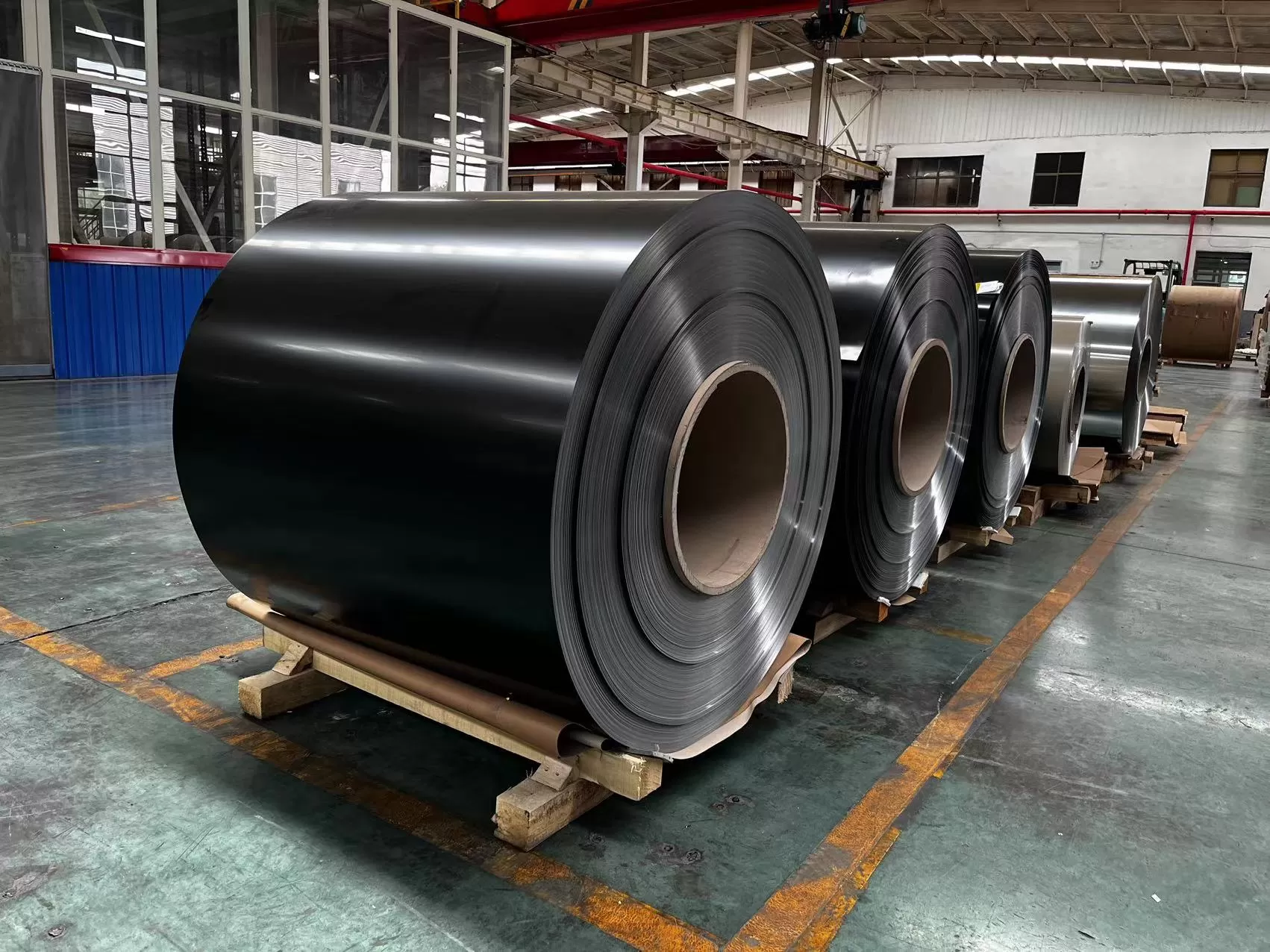

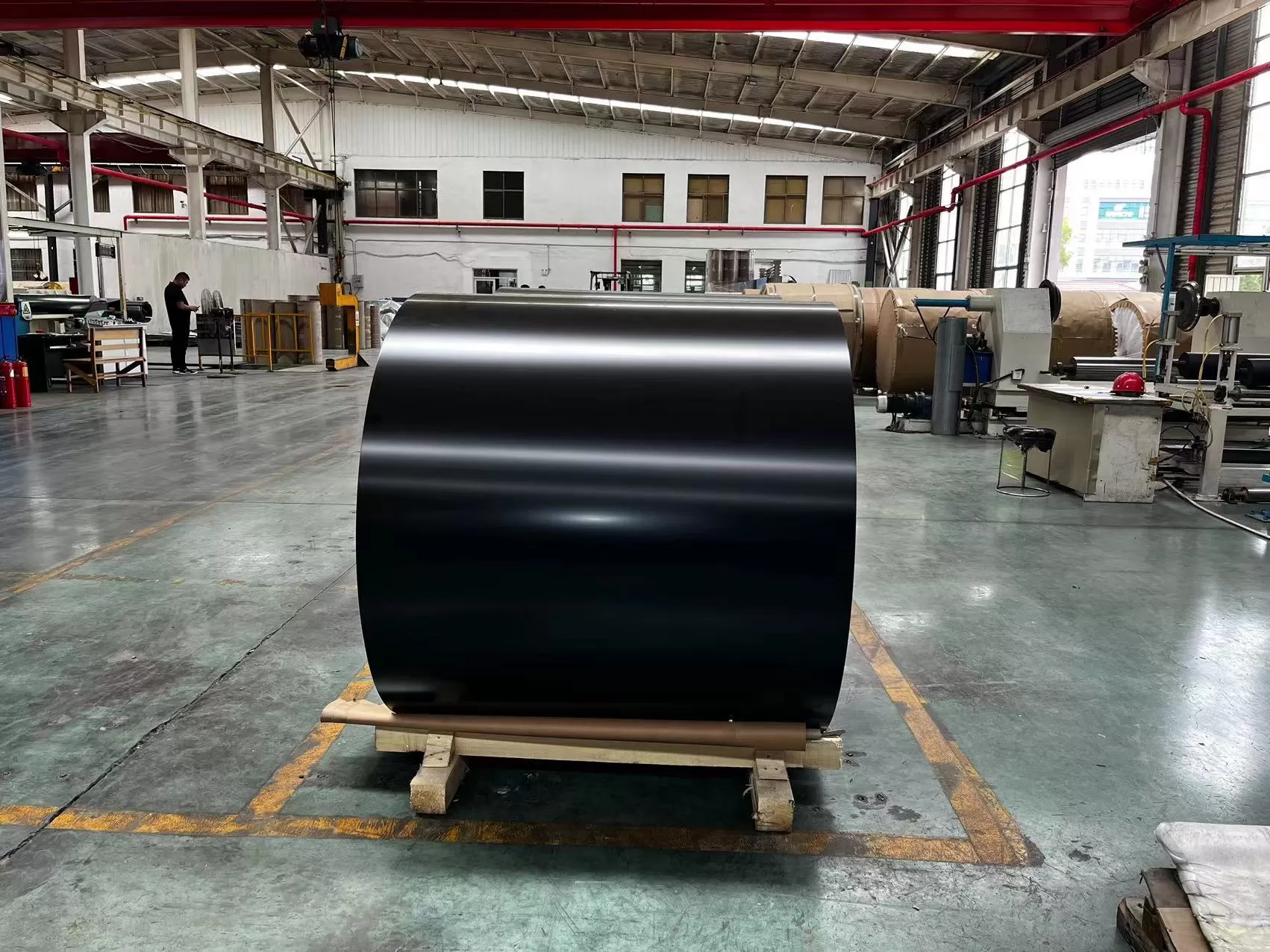

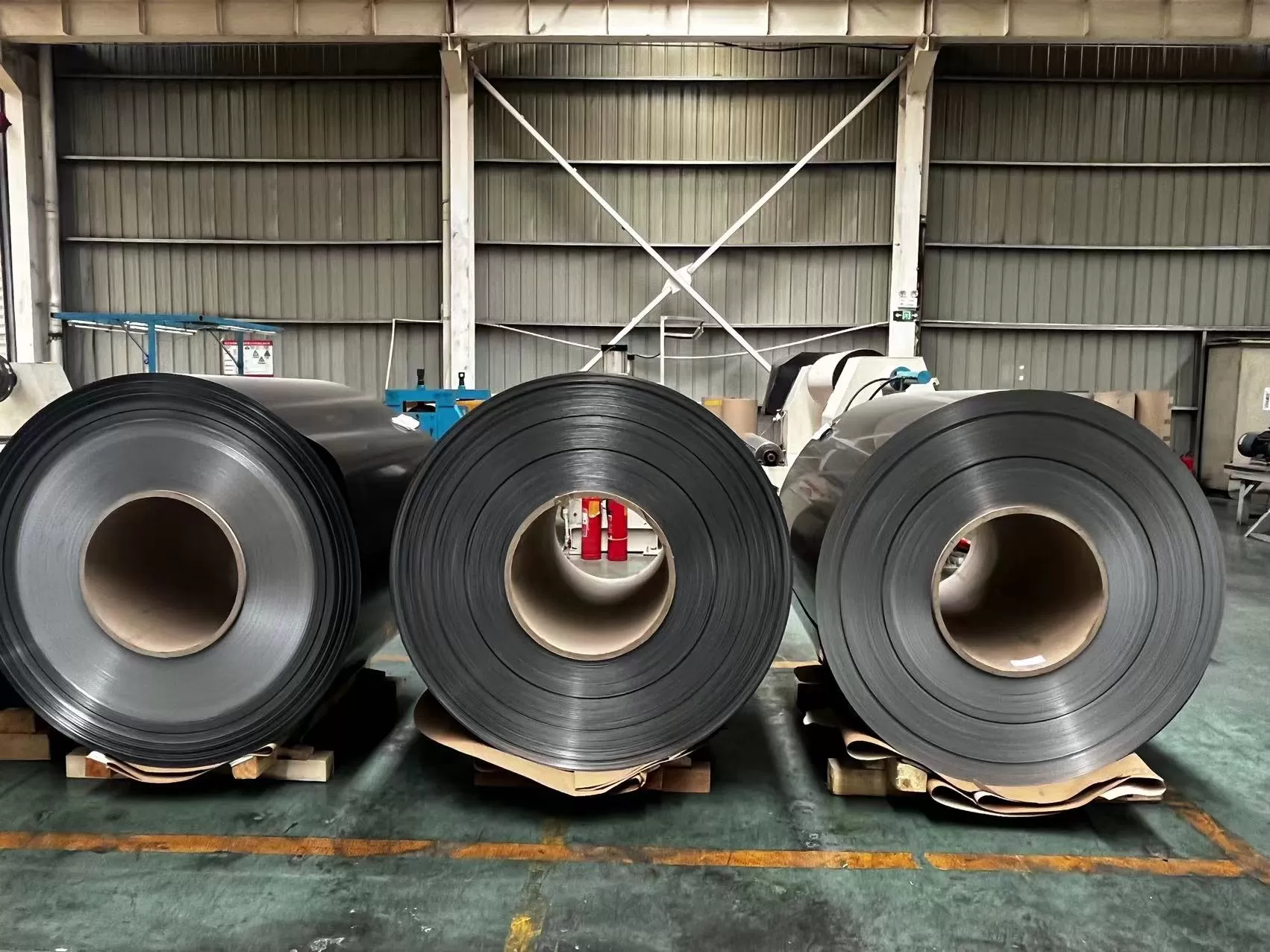

Jinhu Aluminum is a leading manufacturer of premium PVDF Color Coated Aluminum Coil, engineered for architectural applications demanding exceptional weatherability and long-term aesthetics. Our PVDF Color Coated Aluminum Coil (Polyvinylidene Fluoride) utilizes a 70% PVDF resin coating system, offering superior resistance to UV radiation, chemical exposure, and harsh environmental conditions. This product guarantees outstanding color consistency and durability, making it the ideal material for high-end building envelopes, roofing, and cladding systems.
Exceptional Weatherability: Withstands prolonged UV exposure, preventing color fade and chalkiness for over 20 years.
Superior Corrosion Resistance: Ideal for coastal and industrial environments where salt and pollutants are present.
Self-Cleaning Properties: The smooth, non-porous surface minimizes dirt adherence and reduces maintenance costs.
Flexibility & Formability: Allows for deep drawing, bending, and profiling without coating cracking or peeling.
Aesthetic Versatility: Available in a wide range of standard and custom colors, including metallic and gloss/matte finishes.
| Parameter | Specification Details |
|---|---|
| Base Material | AA1100, AA3003, AA3004, AA5052 |
| Thickness Range | 0.2mm - 3.0mm (Customizable) |
| Width Range | 600mm - 1600mm (Customizable) |
| Coating Type | 70% PVDF Resin (Kynar®500 / Hylar®5000 equivalent) |
| Coating Thickness | 20-25μm (Minimum), up to 30μm customizable |
| Surface Finish | Gloss (60-80 GU), Matte (20-30 GU), Textured |
| Peel Strength | ≥ 5B (ASTM D3359) |
| Salt Spray Test | ≥ 1500 hours (ASTM B117) |
| Color Retention | ΔE ≤ 2 (After 3000 hours QUV testing) |
| Warranty | Up to 25 years on coating performance |
Our PVDF Color Coated Aluminum Coil is manufactured under a tightly controlled process to ensure unmatched quality. The aluminum substrate undergoes precision cleaning and chromate pretreatment to enhance coating adhesion. Using advanced coil coating technology, the PVDF finish is applied evenly and cured under specific temperature conditions to optimize mechanical and chemical properties. Every batch undergoes rigorous testing for coating thickness, adhesion, hardness, and color consistency to meet international standards such as AAMA 2605 and QUALICOAT Class 3.
Architectural Roofing & Wall Cladding
Curtain Wall Systems
Building Facades & Canopies
Industrial & Commercial Partitions
Signage & Decorative Elements
Interested in our PVDF Color Coated Aluminum Coil? Contact us for a detailed quote tailored to your project requirements. Provide your specifications below, and our technical team will respond within 24 hours.
[Click to Contact Us for Pricing]
Specification Guide for Quote Requests:
Product Name: PVDF Color Coated Aluminum Coil
Quantity (tons):
Thickness (mm):
Width (mm):
Color (RAL Code or sample):
Coating Thickness (μm):
Packaging Requirements:
Jinhu Aluminum — Precision-Coated Solutions for Global Architecture.
